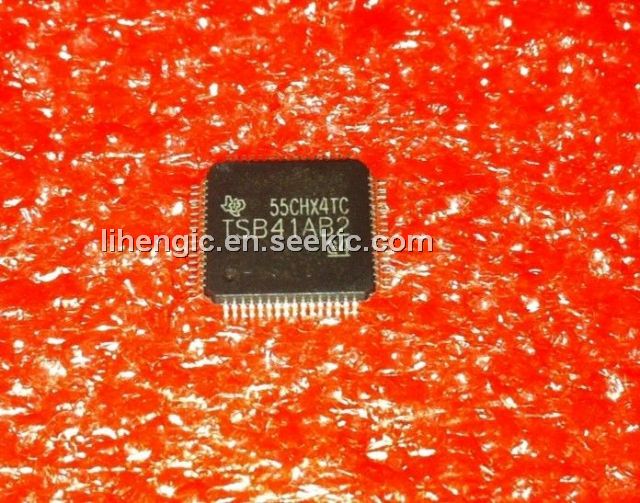

TSB41AB2

cable transceiver/arbiter, 5V, 2.5W,QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.86~0.88 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 200 :	0.88 / Piece
300 ~ 400 :	0.87 / Piece
500 ~ 1000 :	0.86 / Piece

PartNumber:: TSB41AB2

Brand:: Texas Instruments - TI | Pack: | D/C: 10+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-22

From Other Seller

Part Number:TSB41AB2
US $0.86 - 0.88
TSB41AB2PAP

US $3.75 - 3.95 / Piece
(0) Remove
TSB41AB2PAPRG4

US $1.00 - 1.30 / Piece
(0) Remove
Quantity:

piece

Product Summary

TSB41AB2 is a cable transceiver/arbiter. The TSB41AB2 provides the digital and analog transceiver functions needed to implement a two-port node in a cable-based IEEE 1394 network. The TSB41AB2 is designed to interface with a link layer controller (LLC) , such as the TSB12LV21, TSB12LV22, TSB12LV23, TSB12LV26, TSB12LV31, TSB12LV41, TSB12LV42, or TSB12LV01A. The TSB41AB2 requires only an external 24.576-MHz crystal as a reference.

Parametrics

TSB41AB2 absolute maximum ratings: (1) Supply voltage range, VDD: -0.3V to 4V; (2) Input voltage range, VI: -0.5V to VDD +0.5V; (3) Output voltage range at any output, VO: -0.5V to VDD +0.5V; (4) Operating free air temperature: 0°C to 70°C; (5) Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 2600°C; (6) Storage temperature range, Tstg: -65°C to 150°C.

Features

TSB41AB2 features: (1) Fully Supports Provisions of IEEE 1394-1995 Standard for High Performance Serial Bus and IEEE 1394a-2000; (2) Fully Compliant With OpenHCI Requirements; (3) Register Bits Give Software Control of Contender Bit, Power Class Bits, Link Active Control Bit and IEEE 1394a-2000 Features; (4) EEE 1394a-2000 Compliant Common Mode Noise Filter on Incoming TPBIAS; (5) Fail-Safe Circuitry Senses Sudden Loss of Power to the Device and Disables the Port; (6) Software Device Reset (SWR) ; (7) Ultralow-Power Sleep Mode; (8) Cable Power Presence Monitoring; (9) Cable Ports Monitor Line Conditions for Active Connection to Remote Node; (10) nteroperable With Link Layer Controllers Using 3.3V; (11) Single 3.3-V Supply Operation; (12) Meets Intel Mobile Power Guideline 2000.
