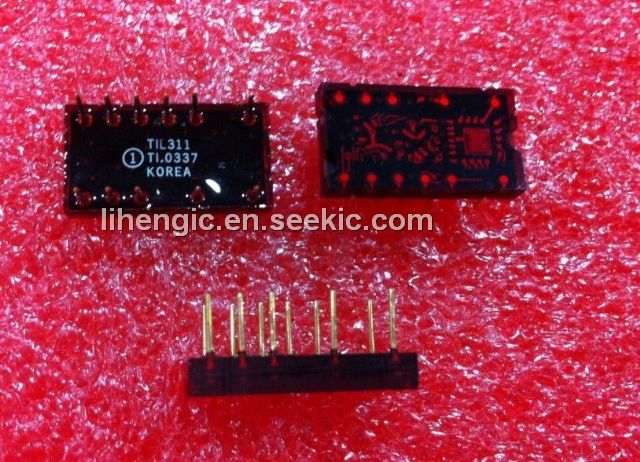

The TIL311 is a Hexadecimal display with logic.
Parametrics
TIL311 Logic supply voltage, VCC: 7V; (2) LED supply voltage: 7V; (3) Input Voltage: 5.5V; (4) Decimal point current: 20mA; (5) operating case temperature range: 0 to 85°C; (6) storage temperature range: -25°C to 85°C.
Features
TIL311 features: (1) 7,62-mm (0.300-inch) Character; (2) high brigthness; (3) left-and-hand decimals; (4) separate LED and logic power supplies may be used; (5) wide viewing angle; (6) internal TTL MSI chip with latch, decoder, and driver; (7) opertates from 5-volt supply; (8) constant-current drive for Hexadecimal characters; (9) easy system interface.

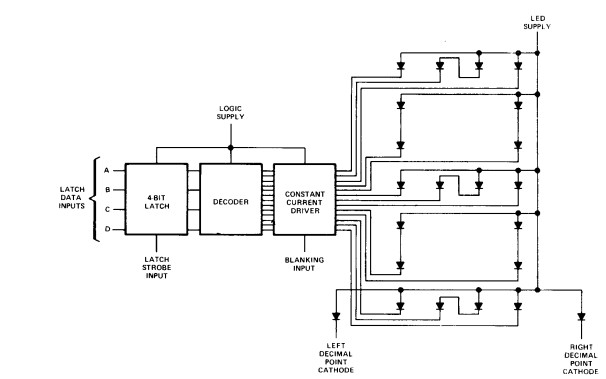

Diagrams
