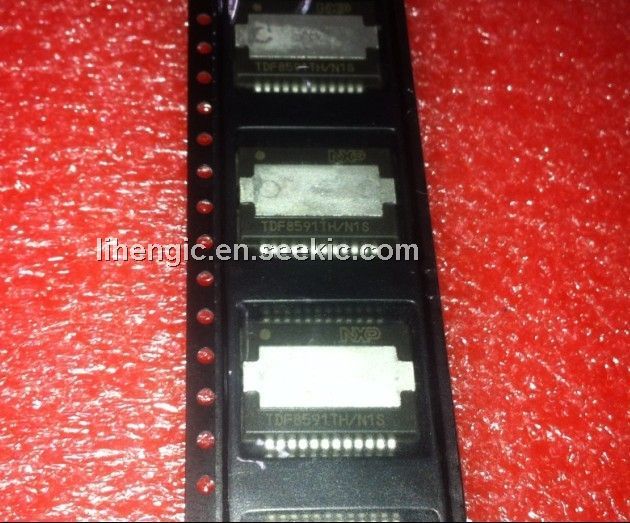

TDF8591TH/N1S

amplifier, 4Ω, ±14V, SOT566-3

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~9.66 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 20 :	9.66 / Piece
50 ~ 100 :	9.45 / Piece
100 ~ 500 :	8.00 / Piece

PartNumber:: TDF8591TH/N1S

Brand:: NXP Semiconductors - nxp | Pack: | D/C: 10+

Availability:: Supply Ability: 1500/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-04

From Other Seller

Part Number:TDF8591TH/N1S
US $8.00 - 9.66
Quantity:

piece

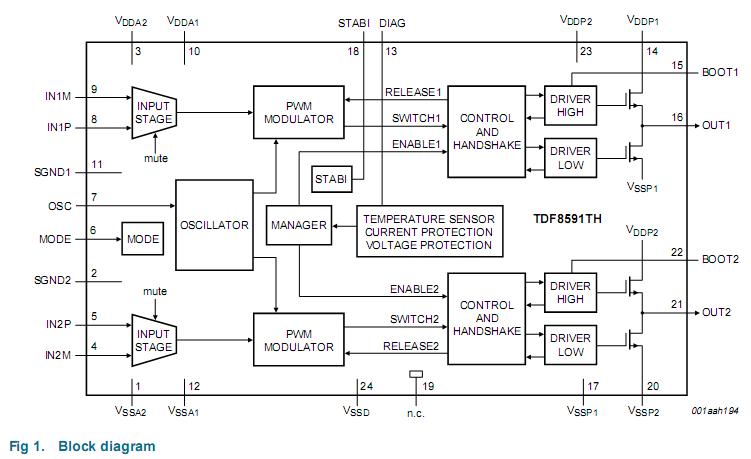

Product Summary

TDF8591TH/N1S is a high-efficiency class-D audio power ampli?er with low power dissipation for application in car audio systems. The TDF8591TH/N1S is available in an HSOP24 power package with a small internal heat sink. Depending on the supply voltage and load conditions, a small or even no external heat sink is required. The TDF8591TH/N1S operates over a wide supply voltage range from ±14V to ±29V and consumes a low quiescent current.

Parametrics

TDF8591TH/N1S absolute maximum ratings: (1) voltage on pin MODE VMODE: 0 to 8 (referred to SGND2) ; (2) voltage on pin OSC VOSC: 0 to 40V (referred to VSSD); (3) voltage on pin IN1M VIN1M: -5V to +5V (referred to SGND1) ; (4) voltage on pin IN1P VIN1P: -5V to +5V(referred to SGND1) ; (5) voltage on pin IN2M VIN2M: -5V to +5V (referred to SGND2) ; (6) voltage on pin IN2P VIN2P: 5V to +5V (referred to SGND2) ; (7) voltage on pin DIAG VDIAG: 0 to 9V (referred to VSSD) ; (8) output voltage Vo: Vssp -0.3V to VDDp +0.3V.

Features

TDF8591TH/N1S features: (1) Zero dead time switching; (2) Advanced output current protection; (3) No DC offset induced pop noise at mode transitions; (4) High efficiency; (5) Supply voltage from ±14V to ±29V; (6) Low quiescent current; (7) Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL) ; (8) Load (BTL) Fixed gain of 26dB in SE and 32dB in BTL; (9) High BTL output power: 310W into 4Ω; (10) Suitable for speakers in the 2 to 8Ω; (11) High supply voltage ripple rejection; (12) Internal oscillator or synchronized to an external clock; (13) Full short-circuit proof outputs across load and to supply lines; (14) Thermal foldback and thermal protection; (15) AEC-Q100 qualified.
