Product Summary

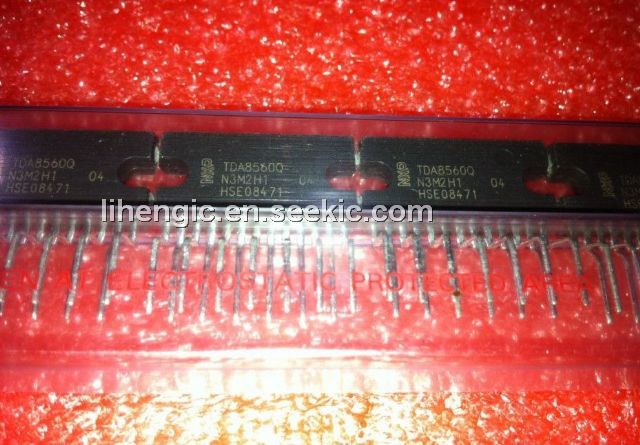

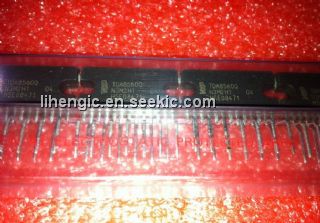

The TDA8560Q is an integrated class-B output amplifier in a 13-lead single-in-line (SIL) power package. The TDA8560 contains 2 × 40 W/2Ω amplifiers in BTL configuration. The TDA8560Q is primarily developed for car radio applications.
Parametrics
TDA8560Q absolute maximum ratings: (1) supply voltage operating VP: 18V, non-operating: 30V, load dump protection: 45V during 50 ms; tr≥ 2.5 ms) ; (2) AC and DC short-circuit safe voltage Vpsc: 18V; (3) reverse polarity Vpr: 6V; (4) non-repetitive peak output current IOSM: 10A; (5) repetitive peak output current IORM: 7.5A; (6) total power dissipation Ptot: 60W; (7) storage temperature Tsgt: -55°C to +150°C; (8) virtual junction temperature TVj: 150°C.
Features
TDA8560Q features: (1) Requires very few external components; (2) High output power; (3) 4Ω and 2Ω load impedance; (4) Low output offset voltage; (5) Diagnostic facility (distortion, short-circuit and temperature detection) ; (6) Good ripple rejection; (7) Mode select switch (operating, mute and standby) ; (8) Load dump protection; (9) Short-circuit safe to ground, to VP and across the load; (10) Low power dissipation in any short-circuit condition.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA8560Q |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TDA8560Q/N1,112 |
|
IC AMP AUDIO PWR 55W STER 13SIL |
Data Sheet |
Negotiable |
|
||||
|
TDA8560Q/N1C |
NXP Semiconductors |
Audio Amplifiers 2X40W/2 E STEREO BTL RADIO AMP |
Data Sheet |
Negotiable |
|
||||
|
TDA8560Q/N1C,112 |
NXP Semiconductors |
Audio Amplifiers 2X40W/2 E STEREO BTL |
Data Sheet |
Negotiable |
|
||||
