Product Summary
The TA7504P is a zener-protected SuperMESH power mosfet. Applications of the TA7504P include: high current, high speed switching, ideal for off-line power supplies, adaptors and PFC and lighting.
Parametrics
TA7504P absolute maximum ratings: (1) Drain-source Voltage (VGS=0) VDS: 600V; (2) Drain-gate Voltage (RGS=20kΩ) VDGR: 600V; (3) Gate-source Voltage VGS: ±30V; (4) Drain Current(continuous) at TC=25°C, ID: 2.4A; (5) Drain Current (continuous) at TC=100°C, ID: 1.51A; (6) Drain Current(pulsed) IDM: 9.6A; (7) Total Dissipationat TC=25°C, PTOT: 45W; (8) Derating Factor: 0.36W/°C; (9) Gate source ESD(HBM-C=100pF, R=1.5KΩ) VESD(G-S) : 2100V; (10) Peak Diode Recovery voltage slope dv/dt: 4.5V/ns; (11) Insulation With stand Voltage (DC) VISO: 2500V; (12) Operating Junction Temperature Storage Temperature: -55 to 150°C.
Features
TA7504P features: (1) Typical RDS (on ) =3.3Ω; (2) extremly high dv/dt capability; (3) 100% avalanche tested; (4) gate charge minimized; (5) very low intrinsic ca[acitances; (6) very good manufacturing repeatibility.

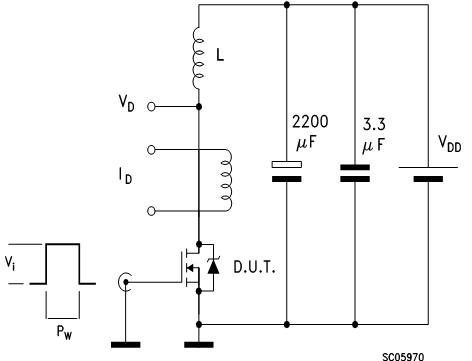

Diagrams
