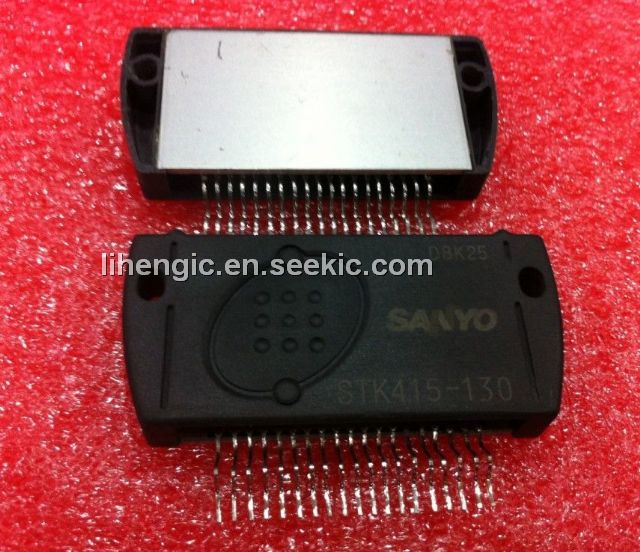

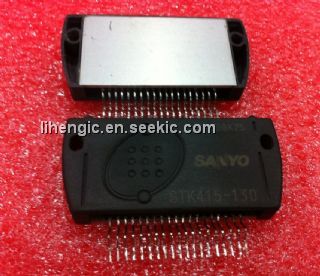

STK415-130

audio power IC, ±80V, 100W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.68~3.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 20 :	3.70 / Piece
30 ~ 40 :	3.69 / Piece
50 ~ 100 :	3.68 / Piece

PartNumber:: STK415-130

Brand:: Sanyo Semicon Device - SANYO | Pack: | D/C: 04+

Availability:: Supply Ability: 200/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-22

From Other Seller

Part Number:STK415-130
US $3.68 - 3.70
Quantity:

piece

Product Summary

The STK415-130 is a class H audio power amplifier hybrid IC that features a built-in power supply switching circuit. The STK415-130 provides high efficiency audio power amplification by controlling (switching) the supply voltage supplied to the power devices according to the detected level of the input audio signal. Audio power amplifier is one kind of applications of the STK415-130.

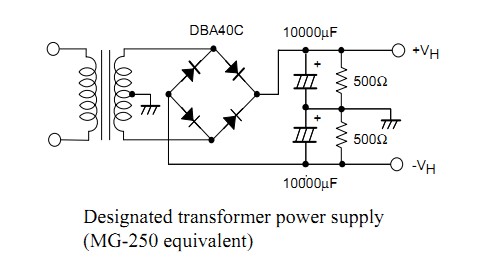

Parametrics

STK415-130 absolute maximum ratings: (1) VH maximum quiescent supply voltage 1 VHmax (1) : ±80V (when no signal) ; (2) VH maximum supply voltage 2 VHmax (2) : ±75V (RL≥6Ω) ; (3) VH maximum supply voltage 3 VHmax (3): ±56V (RL≥4Ω) ; (4) VL maximum quiescent supply voltage 1 VL max (1): ±46V (when no signal) ; (5) VL maximum supply voltage 2 VLmax (2) : ±43V (RL≥6Ω) ; (6) VL maximum supply voltage 2 VLmax (3) : ±33V (RL≥4Ω) ; (7) Maximum voltage between VH and VL *4, VH-VL max: 60V (no loading) ; (8) Standby pin maximum voltage Vst max: -0.3 to +5.5V; (9) Thermal resistance θj-c: 1.6°C/W (Per power transistor) ; (10) Junction temperature Tjmax: 150°C (Both the Tj max and Tc max conditions must be met.) ; (11) IC substrate operating temperature Tc max: 125°C; (12) Storage temperature Tstg: -30 to +125°C; (13) Allowable load shorted time: 0.3S (VH=±52V, VL=±34V, RL=8Ω, f=50Hz, PO=100W, 1-channel active) .

Features

STK415-130 features: (1) Pin-to-pin compatible outputs ranging from 80W to 180W; (2) Can be used to replace the STK416-100 series (3-channel models) and the class-AB series (2, 3-channel models) due to its pin compatibility; (3) Pure complementary construction by new Darlington power transistors; (4) Output load impedance: RL = 8Ω to 4Ω supported; (5) Using insulated metal substrate that features superlative heat dissipation characteristics that are among the highest in the industry.
