Product Summary

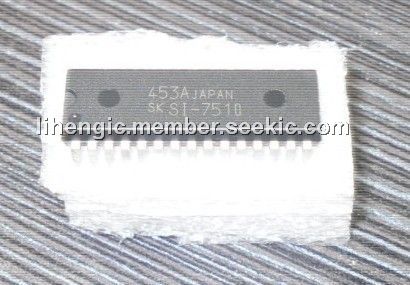

The SI-7510 is a 5-Phase Stepper Motor Driver IC.
Parametrics
SI-7510 absolute maximum ratings: (1)Main Supply Voltage, VCC1: 44 V; (2)Logic Supply Voltage, VCC2: 7 V; (3)Logic Input Voltage, VIN: –0.3 to VCC2V; (4)REF Input Voltage, VREF: –0.3 to VCC2V; (5)SENCE Input Voltage, VSENCE: 2V; (6)Charge Pump Output Voltage, VMC3: 48 V; (7)Power Dissipation, PD: 1.6 W; (8)Operating Ambient Temperature, Ta: –10 to 80℃; (9)Storage Temperature, Tstg: –20 to 150℃; (10)Junction Temperature, Tj: 150℃.
Features
SI-7510 features: (1)Main Supply Voltage, VCC1: 10 to 42V; (2)Logic Supply Voltage, VCC23: to 5.5 V; (3)REF Input Voltage, VREF: 0.1 to 1 V.

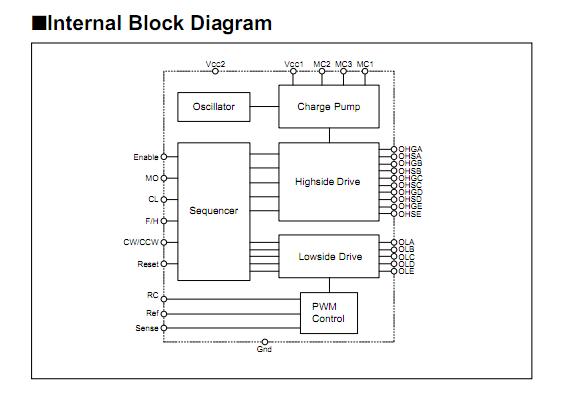

Diagrams
 |
