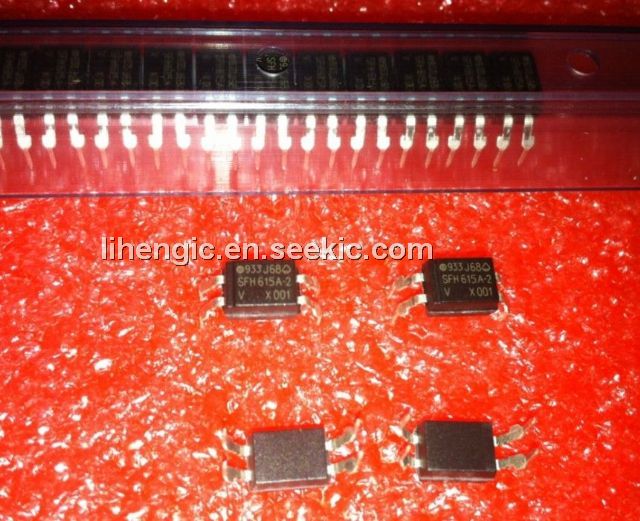

SFH615A-2

isolator, 1mA, 7V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.18~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 200 :	0.20 / Piece
300 ~ 500 :	0.19 / Piece
700 ~ 1000 :	0.18 / Piece

PartNumber:: SFH615A-2

Brand:: Vishay Siliconix - Vishay | Pack: | D/C: 11+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-21

From Other Seller

Part Number:SFH615A-2
US $0.18 - 0.20
Quantity:

piece

Product Summary

The SFH615A-2 is an optically coupled isolator consist of infrared light emitting diodes and NPN silicon photo transistors in space efficient dual in line plastic packages. Applications of the SFH615A-2 include: Computer terminals, Industrial systems controllers, Measuring instruments, Signal transmission between systems of different potentials and impedances.

Parametrics

SFH615A-2 aboslute maximum ratings: (1) Storage Temperature: -55°C to +125°C; (2) Operating Temperature: -55°C to +100°C; (3) Lead Soldering Temperature (1/16 inch (1.6mm) from case for 10 secs) : 260°C; (4) Forward Current: 50mA; (5) Reverse Voltage: 6V; (6) Power Dissipation: 70mW; (7) Collector-emitter Voltage BVeco: 70V; (8) Emitter-collector Voltage BVeco: 6V; (9) Power Dissipation: 150mW; (10) Total Power Dissipation: 200mW.

Features

SFH615A-2 features: (1) 10mm lead spread - add G after part no. Surface mount - add SM after part no. ; (2) Low input current 1mA IF; (3) High Current Transfer Ratios (40-320% at 10mA, 13% min at 1mA) ; (4) High Isolation Voltage (5.3kCRMS, 7.5kVpk) ; (5) High BVCEO (70V min) ; (6) All electrical parameters 100% tested; (7) Custom electrical selections available.
