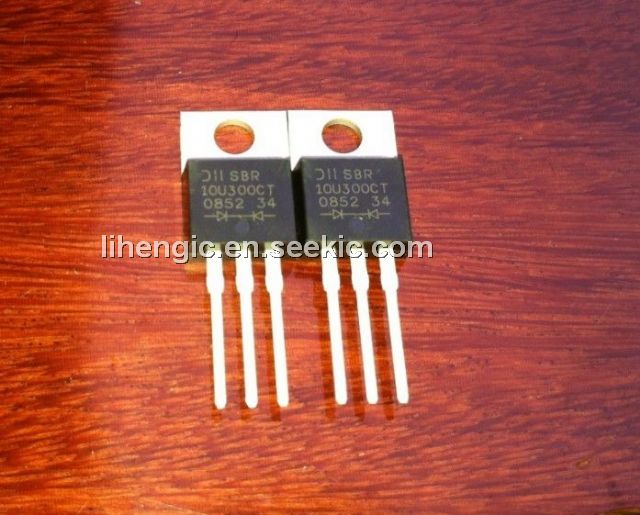

Product Summary

The SBR10U300CT is a 10A SBR super barrier rectifier.

Parametrics

SBR10U300CT absolute maximum ratings: (1) Peak Repetitive Reverse Voltage VRRM, Working Peak Reverse Voltage VRWM, DC Blocking Voltage: 300V; (2) RMS Reverse Voltage VR(RMS) : 212V; (3) Average Rectified Output Current@TC=150°C, IO: 10A; (4) Non-Repetitive Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load IFSM: 150A; (5) Peak Repetitive Reverse Surge Current (2uS-1Khz) IRRM: 3A; (6) Maximum Thermal Resistance (per leg) , Package=TO-220AB:2°C/W, Package=ITO-220AB: 4°C/W. (7) Operating and Storage Temperature Range; -65 to +175°C.

Features

SBR10U300CT features: (1) Low Forward Voltage Drop; (2) Excellent High Temperature Stability; (3) Super Barrier Design; (4) Soft, Fast Switching Capability; (5) Molded Plastic TO-220AB, and ITO-220AB Packages; (6) Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0; (7) Moisture Sensitivity: Level 1 per J-STD-020C; (8) Moisture Sensitivity: Level 1 per J-STD-020C ; (9) Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208.

Diagrams

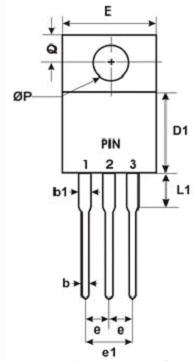

SBR10U300CT Dimension

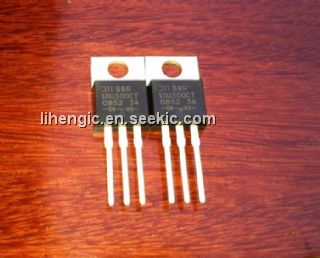

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SBR10U300CT
SBR10U300CT
Diodes Inc.
Rectifiers 10A 300V
Data Sheet
0-1: $1.33
1-10: $1.21
10-100: $0.94
100-250: $0.84
