Product Summary

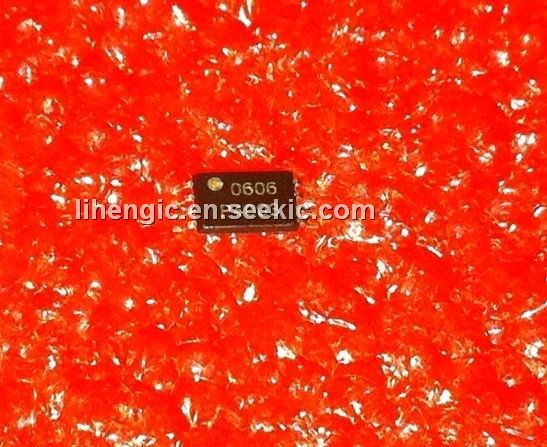

The RJP4003ANS is an Nch IGBT for Strobe Flash. Strobe flash for camera is one application of the RJP4003ANS.

Parametrics

RJP4003ANS maximum ratings: (1) Collector-emitter voltage VCES: 400V(VGE=0V) ; (2) Gate-emitter voltage VGES: ±6V (VCE=0V) ; (3) Peak gate-emitter voltage VGEM: ±8V (VCE=0V, tw=10s) ; (4) Collector current (Pulse) ICM: 150A (CM= 400µF) ; (5) Junction temperature Tj: –40 to +150°C; (6) Storage temperature Tstg: -40 to +150°C.

Features

RJP4003ANS features: (1) Ultra small surface mount package (VSON-8) ; (2) VCES: 400V; (3) ICM: 150A; (4) Drive voltage: 4V.

Diagrams

RJP4003ANS Circuit
