Product Summary

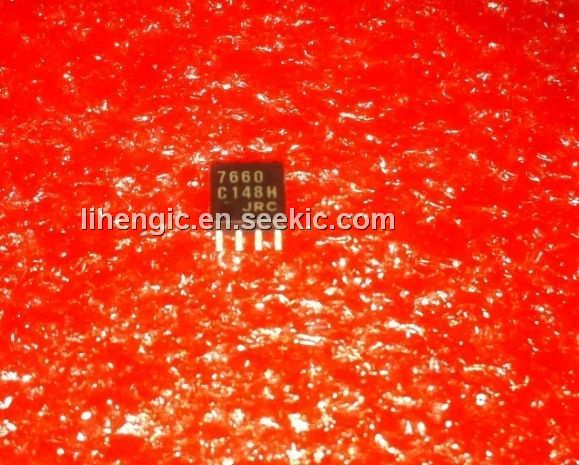

The NJU7660M is a voltage converter incoporated CR oscillator, voltage-level-shifter and power-MOS, which generates a polarity-converted negative voltage or towfold voltage of an operating voltage ranging from +1.5 to +10V. The oscillation frequency of the NJU7660M is 5kHz and the negative voltage converter (on no-load condition) achieves extremely high-efficiency voltage conversion rate of 99.9%.
Parametrics
NJU7660M absolute maximum ratings: (1) supply voltage V+: 10.5V; (2) input voltage VIN: -0.3 to (V+ +0.3V)@V+＜5.5V, (-V+ -5.5) to (V+ +0.3V) @V+＞5.5V; (3) output short: continuity@V+＜5.5V; (4) Power Dissipation PD: 300mW; (5) operating temperature range Topr: -40 to 85°C; (6) storage temperature Tstg: -65 to +150°C.
Features
NJU7660M features: (1) polarity-converted negative voltage output; (2) twofold positive voltage output; (3) operating voltage: +1.5V to 10.0V (for negative voltage converter) ; (3) operating voltage: +3.0 to 10.0V (for positive voltage converter) ; (4) high-effciency voltage conversion rate (negative voltage converter) ; (5) 2n times voltage output using cascade connection; (6) few external components; (7) package outline; (8) C-MOS technology.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJU7660M |
NJR |
DC/DC Switching Converters Voltage Converter |
Data Sheet |
|
|
||||||||||||
|
NJU7660M-TE1 |
NJR |
Translation - Voltage Levels Voltage Converter |
Data Sheet |
|
|
||||||||||||
|
NJU7660M-TE3 |
NJR |
DC/DC Switching Converters Voltage Converter |
Data Sheet |
|
|
||||||||||||
|
NJU7660M-TE2 |
NJR |
DC/DC Switching Converters Voltage Converter |
Data Sheet |
|
|
||||||||||||
