Product Summary

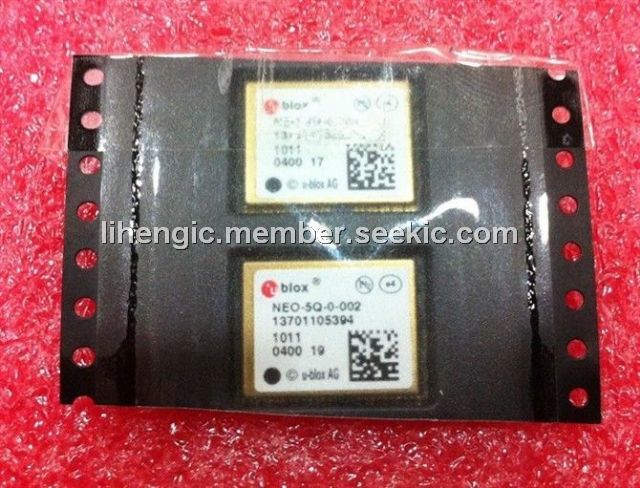

The NEO-5Q-0-002 is a GPS module. Powered by the high performance 50-channel u-blox 5 technology, the NEO-5Q-0-002 provides excellent performance at an economical price. A 32-channel acquisition engine with over 1 million effective correlators is capable of massive parallel searches across the time/frequency space. The NEO-5Q-0-002 enables a Time To First Fix(TTFF) of less than 1 second while long correlation/dwell times make possible the best-in-class acquisition and tracking sensitivity. An available functionality is KickStart, a new feature enabling accelerated acquisition of weak signals. Once acquired, satellites are passed on to a power-optimized dedicated tracking engine. The NEO-5Q-0-002 allows the GPS engine to simultaneously track up to 16 satellites while searching for new ones.

Parametrics

NEO-5Q-0-002 absolute maximum ratings: (1)Power supply voltage (VCC): -0.5 V to 3.6 V; (2)Backup battery voltage (V_BCKP): -0.5 V to 3.6 V; (3)USB supply voltage (VDDUSB): -0.5 V to 3.8 V; (4)VCC_RF output current: 100 mA; (5)Input power at RF_IN: +5 dBm; (6)Storage temperature: -40℃ to 85℃.

Features

NEO-5Q-0-002 features: (1)50-channel u-blox 5 engine with over 1 million effective correlators; (2)<1 second Time To First Fix for Hot and Aided Starts; (3)-160dBm SuperSense acquisition and tracking sensitivity; (4)Accelerated startup at weak signals for modules with KickStart feature; (5)Supports AssistNow Online and AssistNow Offline A-GPS services; OMA SUPL compliant; (6)High immunity to jamming; (7)4 Hz position update rate; (8)Miniature 16.0 x 12.2mm package; (9)UART, USB, DDC interfaces; (10)1.8V supply voltage for low power consumption (NEO-D / NEO-5G); (11)RoHS compliant.

Diagrams

NEO-5Q-0-002 block diagram
