Product Summary

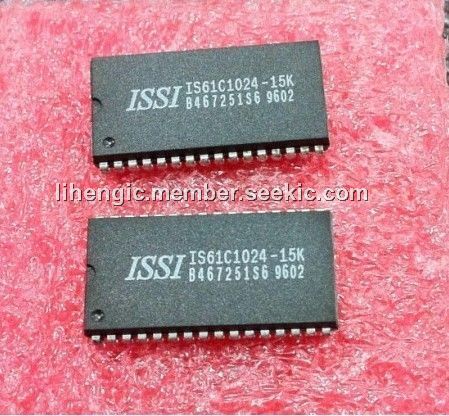

The IS61C1024-15K is a very high-speed, low power, 131,072-word by 8-bit CMOS static RAM. It is fabricated using /SS/’s high-performance CMOS technology. The IS61C1024-15K which is reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.

Parametrics

IS61C1024-15K absolute maximum ratings: (1)Terminal Voltage with Respect to GND: –0.5 V to +7.0 V; (2)Temperature Under Bias: –55℃ to +125℃; (3)Storage Temperature: –65℃ to +150℃; (4)Power Dissipation: 1.5 W; (5)DC Output Current (LOW): 20 mA.

Features

IS61C1024-15K features: (1)High-speed access time: 12, 15, 20, 25 ns; (2)Low active power: 600 mW (typical); (3)Low standby power: 500 mW (typical) CMOS standby; (4)Output Enable (OE) and two Chip Enable (CE1 and CE2) inputs for ease in applications; (5)Fully static operation: no clock or refresh required; (6)TTL compatible inputs and outputs; (7)Single 5V power supply; (8)Low power version available: IS61C1024L; (9)Commercial and industrial temperature ranges available.

Diagrams

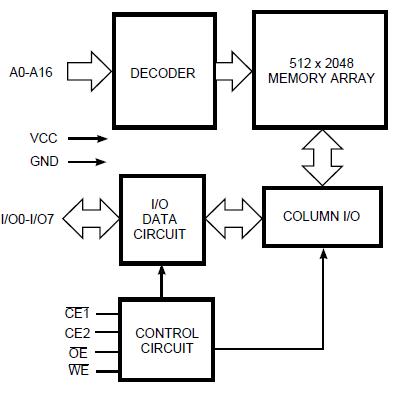

IS61C1024-15K block diagram
