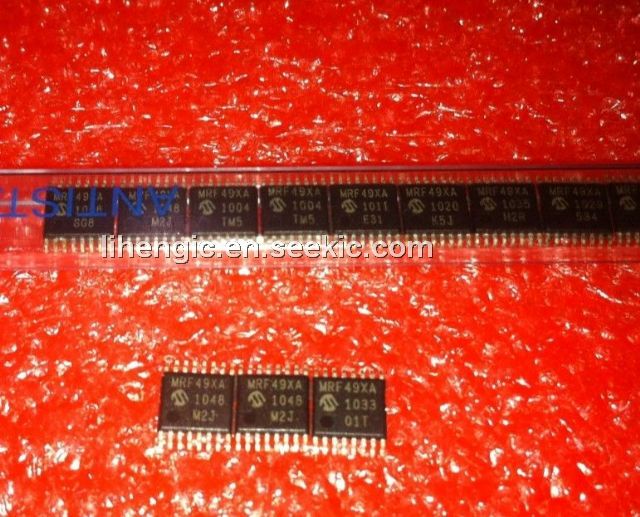

Product Summary

MRF49XA is an ISM band sub-GHz RF transceiver. The MRF49XA is an ideal choice for low-cost, high-volume, low data rate (<256kbps) , two-way, short range wireless applications. The MRF49XA has a low phase noise and provides an excellent adjacent channel interference, Bit Erro Rate (BER) and larger communication coverage along with higher output power.

Parametrics

MRF49XA absolute maximum ratings: (1) Temperature under bias: -40°C to +85°C; (2) Storage temperature: -55°C to +125°C; (3) Lead temperature (soldering, max 10s) : +260°C; (4) DD with respect to Voltage on Vss: -0.3V to 6V; (5) Voltage on any combined digital and analog pin with respect to Vss (except RFP, RFN and VDD) : -0.3V to (VDD +0.3V) ; (6) Voltage on open-collector outputs (RFP, RFN) : -0.5V to (VDD+ 1.5V) ; (7) Input current into pin (except VDD and VSS) : -25mA to 25mA; (8) Electrostatic discharge with human body model: 1000V.

Features

MRF49XA features: (1) Fully Integrated Sub-GHz Transceiver; (2) Supports Proprietary Sub-GHz Wireless Protocols; (3) 4-Wire Serial Peripheral Interface (SPI) Compatible Interface; (4) CMOS/TTL Compatible I/Os; (5) Clock and Reset Signals for Microcontroller; (6) Integrated 10MHz Oscillator Circuitry; (7) Integrated Low Battery Voltage Detector; (8) Supports Power-Saving Modes; (9) Operating Voltage: 2.2V-3.8V; (10) Low-Current Consumption, Typically: 11mA in RX mode, 15mA in TX mode, 0.3μA in Sleep mode,; (11) Industrial Temperature Range; (12) 16-Pin TSSOP Package.

Diagrams

MRF49XA Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

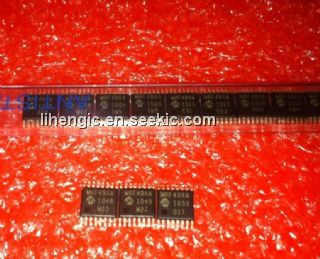

MRF49XA
MRF49XA
Other

Data Sheet
Negotiable
MRF49XA-I/ST
MRF49XA-I/ST
Microchip Technology
RF Transceiver 433-930MHz Transceiver
Data Sheet
0-1: $1.76
1-10: $1.41
10-25: $1.30
25-100: $1.17
MRF49XAT-I/ST
MRF49XAT-I/ST
Microchip Technology
RF Transceiver 433-930MHz Transceiver
Data Sheet
0-1930: $1.19
1930-2500: $1.19
