Product Summary
The MPC972 is a 3.3V compatible, PLL based clock driver device targeted for high performance CISC or RISC processor based systems. With output frequencies of up to 125MHz and skews of 550ps, the MPC972 is ideally suited for most synchronous systems. The MPC972 offers twelve low skew outputs plus a feedback and syncs output for added flexibility and ease of system implementation.
Parametrics
MPC972 absolule maximum ratings: (1)Supply Voltage: –0.3 V to 4.6 V; (2)Input Voltage: –0.3 V to VDD + 0.3 V; (3)Input Current: ±20 mA; (4)Storage Temperature Range: –40℃ to 125℃.
Features
MPC972 features: (1)Fully Integrated PLL; (2)Output Frequency up to 125MHz; (3)Compatible with PowerPC and Pentium Microprocessors; (4)TQFP Packaging; (5)3.3V VCC; (6)±100ps Typical Cycle-to-Cycle Jitter.

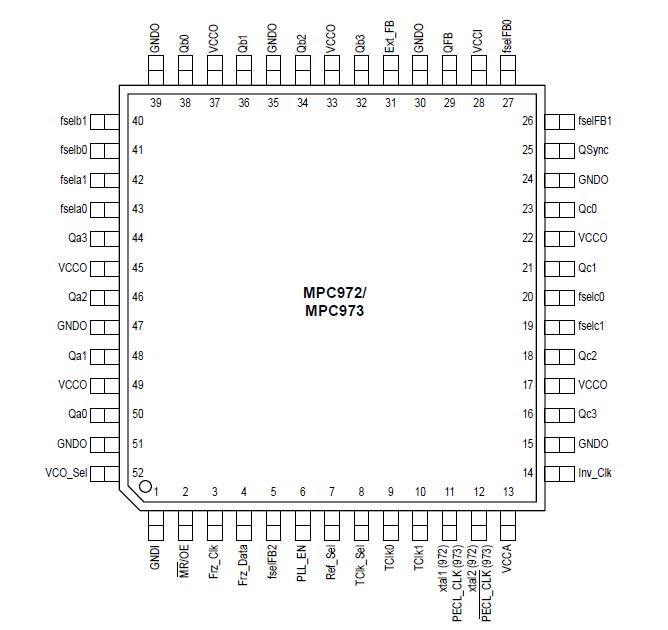

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPC972FA |
Freescale Semiconductor |
IC PLL CLOCK DRIVER 52-LQFP |
Data Sheet |
Negotiable |
|
||||
|
MPC972 |
Other |
|
Data Sheet |
Negotiable |
|
||||
