Product Summary
The MM74HC00N is a Quad 2-Input NAND Gate. It advanced silicongate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The MM74HC00N has buffered outputs. It has high noise immunity and the ability to drive 10 LS-TTL loads. The MM74HC00N logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Parametrics
MM74HC00N absolute maximum ratings: (1)Supply Voltage: –0.5V to +7.0V; (2)DC Input Voltage: –1.5V to VCC+1.5V; (3)DC Output Voltage: –0.5V to VCC+0.5V; (4)Clamp Diode Current: ±20mA; (5)DC Output Current, per pin: ±25mA; (6)DC VCC or GND Current, per pin: ±50mA; (7)Storage Temperature Range: –65℃ to +150℃; (8)Power Dissipation Note 2: 600mW; (9)S.O. Package only: 500mW; (10)Lead Temperature (Soldering 10 seconds): 260℃.
Features
MM74HC00N features: (1)Typical propagation delay: 8ns; (2)Wide power supply range: 2V–6V; (3)Low quiescent current: 20μA maximum (74HC Series); (4)Low input current: 1μA maximum; (5)Fanout of 10 LS-TTL loads.

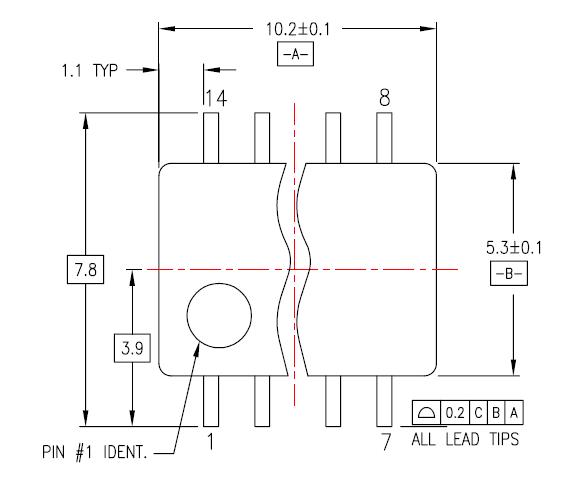

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

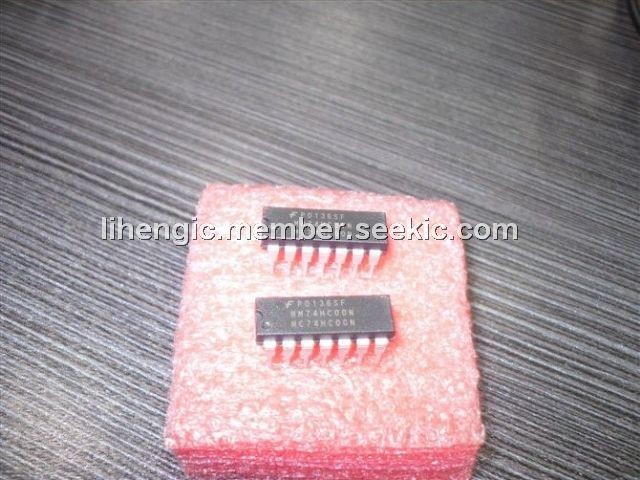

MM74HC00N |
IC GATE NAND QUAD 2INPUT 14-DIP |
Data Sheet |
Negotiable |
|
||||||
