Product Summary
The MC56F8013VFAE is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals to create an extremely cost-effective solution. Because of its low cost, configuration flexibility, and compact program code, the MC56F8013VFAE is well-suited for many applications. The MC56F8013VFAE includes many peripherals that are especially useful for industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, power management, and medical monitoring applications.
Parametrics
MC56F8013VFAE absolute maximum ratings: (1)Supply Voltage Range: -0.3 V to 4.0 V; (2)Analog Supply Voltage Range: - 0.3 V to 4.0 V; (3)ADC High Voltage Reference: - 0.3 V to 4.0 V; (4)Voltage difference VDD to VDDA: - 0.3 V to 0.3 V; (5)Voltage difference VSS to VSSA: - 0.3 V to 0.3 V; (6)Input Voltage Range (Digital inputs): - 0.3 V to 6.0 V; (7)Output Voltage Range(Normal Push-Pull mode): -0.3V to 4.0 V; (8)Output Voltage Range(Open Drain mode): -0.3 V to 6.0 V; (9)Ambient Temperature: -40℃ to 105℃; (10)Storage Temperature: -55 ℃ to 150℃.
Features
MC56F8013VFAE features: (1)Up to 32 MIPS at 32MHz core frequency; (2)DSP and MCU functionality in a unified,C-efficient architecture; (3)One Serial Communication Interface (SCI) with LINslave functionality; (4)One Serial Peripheral Interface (SPI); (5)One 16-bit Quad Timer; (6)One Inter-Integrated Circuit (I2C) Port; (7)Computer Operating Properly (COP)/Watchdog; (8)On-Chip Relaxation Oscillator; (9)Integrated Power-On Reset and Low-Voltage InterruptModule; (10)JTAG/Enhanced On-Chip Emulation forunobtrusive, real-time debugging; (11)Up to 26 GPIO lines; (12)32-pin LQFP Package.

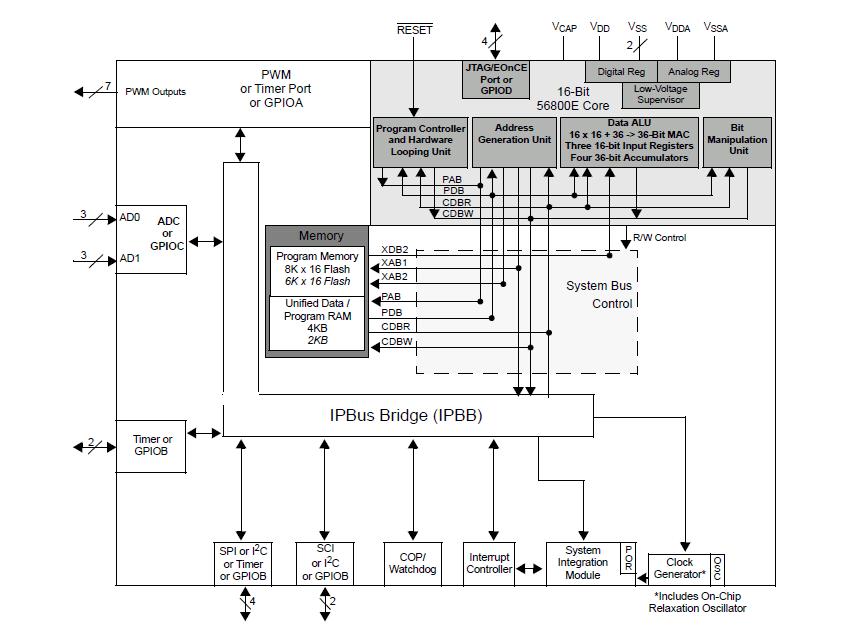

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC56F8013VFAE |
Freescale Semiconductor |
Digital Signal Processors & Controllers (DSP, DSC) 16 BIT DSPHC ANGUILLA |
Data Sheet |
|
|
||||||||||||
|
MC56F8013VFAER2 |
Freescale Semiconductor |
Digital Signal Processors & Controllers (DSP, DSC) 16 BIT DSPHC ANGUILLA |
Data Sheet |
|
|
||||||||||||
