Product Summary
The M6629GP is a general purpose USB (Universal Serial Bus) device controller compliant with the USB Specification Revision 2.0 and supports full speed transfer. The USB transceiver circuit is included, and the M66291GP meets all transfer types which are defined in the USB specification. The M66291GP has FIFO of 3 Kbytes for data transfer and can set 7 endpoints (maximum). Each endpoint can be set programmable of its transfer condition, so can correspond to each device class transfer system of USB.
Parametrics
M6629GP absolute maximum ratings: (1)USB Core supply voltage: -0.3 V ~ +4.2 V; (2)System interface supply voltage: -0.3 V ~ +6.5 V; (3)input voltage: -0.3 V ~ +5.5 V; (4)System interface input voltage: -0.3 V ~ IOVcc+0.3 V; (5)System interface output voltage: -0.3 V ~ IOVcc+0.3 V; (6)Power dissipation: 400 mW; (7)Storage temperature: -55℃ ~ +150℃.
Features
M6629GP features: (1)USB Specification Revision 2.0 compliant; (2)Supports Full Speed (12 Mbps) transfer; (3)Built-in USB transceiver circuit; (4)Built-in oscillation buffer (Supports 6M/12M/24 MHz of oscillator) and PLL at 48 MHz; (5)Supports Vbus direct connection (5 V withstand voltage input), D+ pin pullup output; (6)Supports all transfer type which is defined in the USB specification.(Control transfer / Bulk transfer / Interrupt transfer / Isochronous transfer); (7)Low power consumption operation (Average 15 mA at operation); (8)Robust against signal distortion on USB transfer line due to SIE/DPLL(Digital Phase Lock Loop) of the original design; (9)Easy making enumeration program and timing design because hardware manages the device state / control transfer state (transition timing).

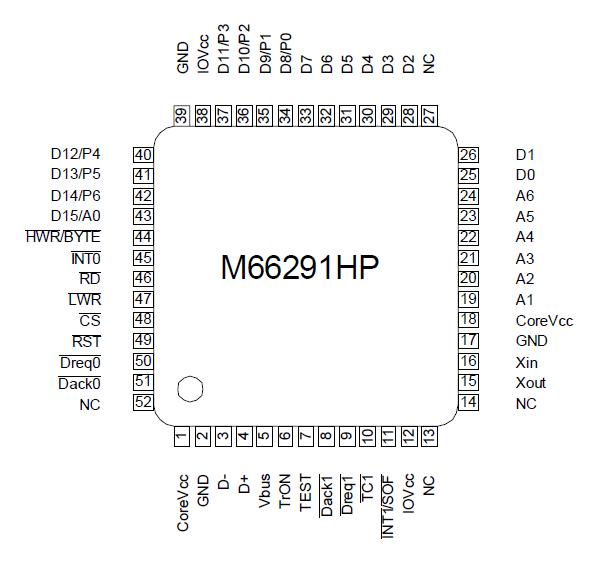

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M66291GP#201 |
Renesas Technology America |
IC USB CONTROLLER GEN-PUR 48LQFP |
Data Sheet |
|
|
||||||
 |
M66291GP#RB0S |
|
IC USB CONTROLLER GEN-PUR 48LQFP |
Data Sheet |
|
|
||||||
