Product Summary

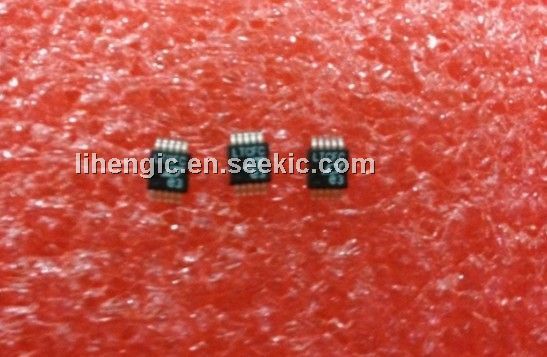

The LTC4416EMS is a low loss dual PowerPath controller for Large PFETs. The LTC4416EMS integrates two interconnected PowerPath controller with soft switchover control. Applications of the LTC4416EMS include: High Current PowerPath Switch, Industrial and Automotive Applications, Uninterruptible Power Supplies, Logic Controlled Power Switch, Battery Backup System and Emergency Systems with Battery Backups.

Parametrics

LTC4416EMS absolute maximum ratings: (1) Supply Voltage (V1, V2) : -14V to 40V; (2) Voltage from V1 or V2 to VS: -40V to 40V; (3) Input Voltage E1, E2: -0.3V to 40V, Vs: -14V to 40V; (4) Output Voltage, G1: -0.3V to the Higher of V1 + 0.3V or + 0.3V, G2: -0.3V to the Higher of V1 + 0.3V or + 0.3V, H1, H2: -0.3V to 7V; (5) Operating Ambient Temperature Range: -40°C to 85°C; (6) Temperature Range: -40°C to 125°C; (7) Storage Temperature Range: -65°C to +150°C; (8) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

LTC4416EMS features: (1) Designed Speciically to Drive Large and Small QG PFETs; (2) Very Low Loss Replacement for Power Supply ORING Diodes; (3) Wide Operating Voltage Range: 3.6V to 36V; (4) -45 to 125°C Operating Temperature Range; (5) Reverse Battery Protection; (6) Automatic Switching Between DC Sources; (7) Low Quiescent Current: 35μA per Channel; (8) Open-Drain Feedback Points for Customer Speciied Hysteresis Control; (9) Minimal External Components; (10) Space Saving 10-Lead MSOP Package.

Diagrams

LTC4416EMS Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LTC4416EMS#PBF
LTC4416EMS#PBF

IC CTLR POWERPATH 10-MSOP
Data Sheet
0-1: $2.86
1-25: $2.27
25-100: $1.79
LTC4416EMS#TRPBF
LTC4416EMS#TRPBF

IC CNTRLR POWERPATH 10-MSOP
Data Sheet
0-2500: $1.82
LTC4416EMS-1#PBF
LTC4416EMS-1#PBF

IC CNTRLR POWERPATH 10-MSOP
Data Sheet
0-300: $1.79
LTC4416EMS-1#TRPBF
LTC4416EMS-1#TRPBF

IC CNTRLR POWERPATH 10-MSOP
Data Sheet
0-2500: $1.82
