Product Summary

The LT450EW is an auris-GmbH.

Parametrics

LT450EW absolute maximum ratings: (1) Center frequency (KHz) : 450±1.5kHz; (2) Insertion loss (dB) max: 2dB; (3) Pass band ripple (dB) max: 2dB; (4) 6dB bandwidth (KHz) min: ±7.5kHz; (5) 40dB bandwidth (KHz) max: ±15kHz; (6) Stop band att ±100KHz (dB) min: 40dB; (7) Input/output impedance (Ohm) : 1500Ohm.

Features

LT450EW features: (1) For communication; (2) 6 elements; (3) 450/455KHz.

Diagrams

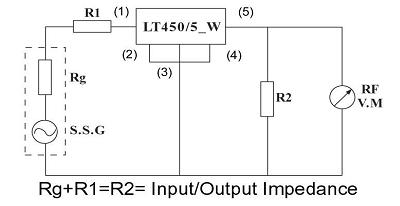

LT450EW Circuit
