Product Summary
The LM139J is a low power offset voltage quad comparator. The LM139J has a unique characteristic in that the input common-mode voltage range includes ground,even though operated from a single power supply voltage. Applications of the LM139J include: limit comparators, simple analog to digital converters, simple analog to erators; wide range VCO; MOS clock timers; multivibratorsand high voltaged igital logic gates.
Parametrics
LM139J absolute maximum ratings: (1) SupplyVoltage,V+: 36VDC or ±18VDC; (2) Differential Input Voltage: 36VDC; (3) Input Voltage: -0.3VDC to +36VDC; (4) Input Current (VIN<0.3VDC) : 50mA; (5) Output Short-Circuit to GND: Continous; (6) Storage Temperature Range: -65°C to +150°C; (7) LeadTemperature (Soldering,10seconds) : 260°C; (8) Operating Temperature Range: 55°C to +125°C; (9) SolderingInformation Dual-In-Line Package Soldering (10 seconds) : 260°C; (10) Small Outline Package Vapor Phase(60 seconds) : 215°C; (11) Infrared (15seconds): 220°C; (12) ESD rating (1.5kΩ in series with 100pF) : 600V.
Features
LM139J features: (1) Wide supply voltage range; (2) Very low supply current drain(0.8mA)-independent of supply voltage; (3) Low input biasing current: 25nA: (4) Low input offset current: ±5nA; (5) Offset voltage: ±3mV; (6) Input common-mode voltage range includes GND; (7) Differential input voltage range equal to the power supply voltage; (8) Low output saturation voltage: 250mV at 4mA; (9) Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic systems.

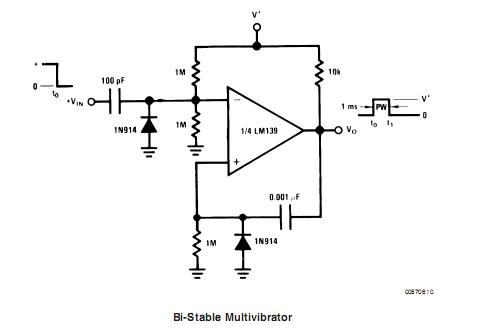

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LM139J/PB |
![]() National Semiconductor (TI) |
![]() Comparator ICs HI PERF QUAD COMP |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LM139JAN |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() LM139J |
![]() National Semiconductor (TI) |
![]() Comparator ICs |
![]() Data Sheet |
![]() Negotiable |
|
