Product Summary

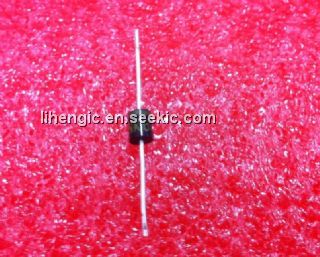

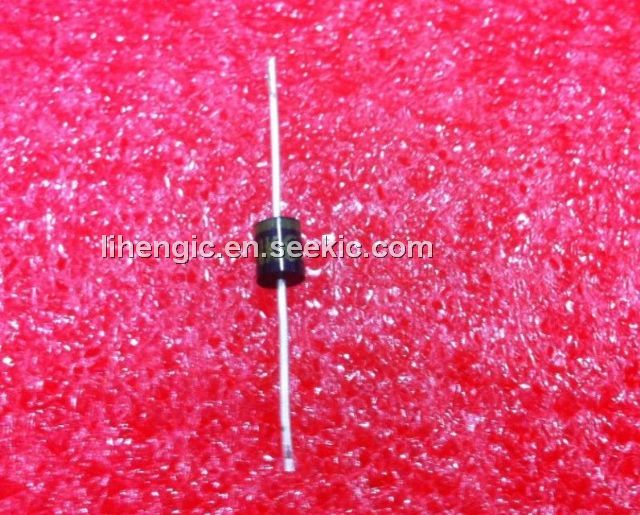

The K1V26 is a sidac.
Parametrics
K1V26 absolute maximum ratings: (1) Storage Temperature Tstg: -40 to 125°C; (2) Operating Junction Temperature Tj: 125°C; (3) Maximum Off-state Voltage VDRM: 180V; (4) RMS On-state Current IT: 1A ( Tl=108°C, 50Hz sine wave (θ=180°C) ; (5) Surge On-state Current ITSM: 20A ( Tj= 25°C, 50Hz sine wave (θ=180°C) non-repetitive -cycle peak value) ; (6) Pulse On-state Current: 25A (Ta =25°C , pulse width to=10μS, sine wave repetitive peak value f=1kHz, Ta =25°C , pulse width to=10μS , sine wave, repetitive peak value f=60Hz: 50A; (7) Critical Rate of Rise of On-state Current diT/dt: 80A/μS.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 K1V26-4060 |
Shindengen |
Sidacs ITSM=20 VBO= 240-270 |
Data Sheet |
|
|
||||||||||||||
|
K1V26-4061 |
Shindengen |
Sidacs ITSM=20 VBO= 240-270 |
Data Sheet |
|
|
||||||||||||||
|
K1V26-7061 |
Shindengen |
Sidacs ITSM=20 VBO= 240-270 |
Data Sheet |
Negotiable |
|
||||||||||||||
|
K1V26-7060 |
Shindengen |
Sidacs ITSM=20 VBO= 240-270 |
Data Sheet |
Negotiable |
|
||||||||||||||
|
K1V26-7000 |
Shindengen |
Sidacs ITSM=20 VBO= 240-270 |
Data Sheet |
Negotiable |
|
||||||||||||||
|
K1V26-4000 |
Shindengen |
Sidacs ITSM=20 VBO= 240-270 |
Data Sheet |
Negotiable |
|
||||||||||||||
|
K1V26(W)-4060 |
Shindengen |
Sidacs Bidirect 180V 1.0A |
Data Sheet |
|
|
||||||||||||||
|
K1V26(W) |
Shindengen |
Sidacs Sidac |
Data Sheet |
Negotiable |
|
||||||||||||||
