Product Summary

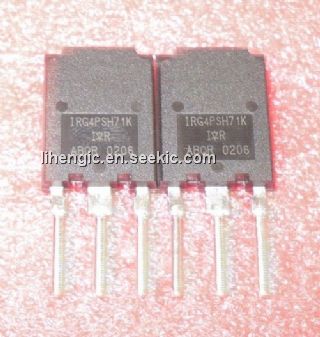

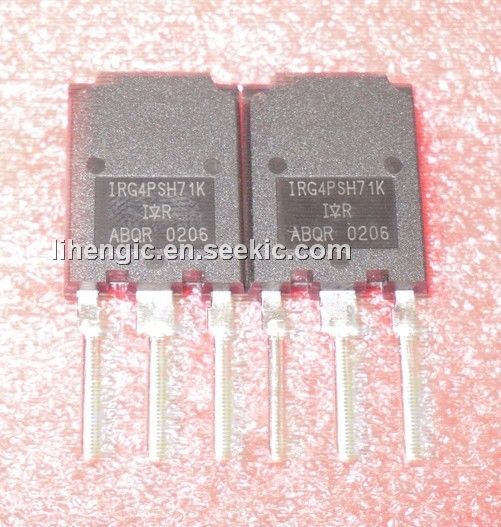

The IRG4PSH71K is an insulated gate bipolar transistor.

Parametrics

IRG4PSH71K absolute maximum ratings: (1) Collector-to-Emitter Breakdown Voltage VCES: 1200V; (2)Continuous Collector Current IC@TC=25°C: 78A; (3) CContinuous Collector Current IC@TC=100°C: 42A; (4) Pulsed Collector Current ICM: 156A; (5) Clamped Inductive Load Current ILM: 156A; (6) Short Circuit Withstand Time tSC: 10μS; (7) Gate-to-Emitter Voltage: ±20V; (8) Reverse Voltage Avalanche Energy EARV: 170mJ; (9) Maximum Power Dissipation PD@Tc=25°C: 350W; (10) PD@TC=100°C, Maximum Power Dissipation: 140W; (11) Operating Junction and Storage Temperature Range: -55 to +150°C.

Features

IRG4PSH71K features: (1) Hole-less clip/pressure mount package compatible with TO-247 and TO-264, with reinforced pins; (2) High short circuit rating IGBTs, optimized for motorcontrol; (3) Minimum switching losses combined with low conduction losses; (4) Creepage distance increased to 5.35mm; (5) Tightest parameter distribution.

Diagrams

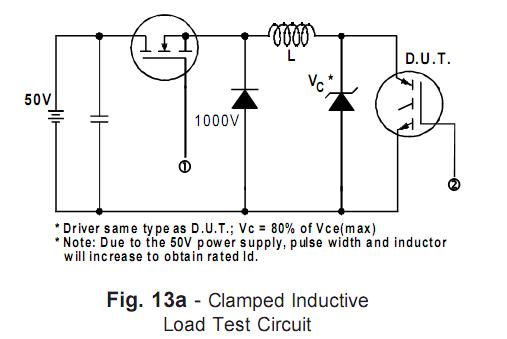

IRG4PSH71K Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRG4PSH71K
IRG4PSH71K
International Rectifier
IGBT UFAST 1200V 78A SUPER-247
Data Sheet
1-50: $6.85
IRG4PSH71KD
IRG4PSH71KD

IGBT W/DIODE 1200V 78A SUPER-247
Data Sheet
0-25: $10.93
IRG4PSH71KDPBF
IRG4PSH71KDPBF
International Rectifier
IGBT Transistors 1200V UltraFast 4-20kHz
Data Sheet
0-1: $12.38
1-25: $9.47
25-100: $7.71
100-250: $7.34
IRG4PSH71KPBF
IRG4PSH71KPBF
International Rectifier
IGBT Transistors 1200V UltraFast 4-20kHz
Data Sheet
0-1: $7.91
1-25: $6.05
25-100: $4.93
100-250: $4.69
