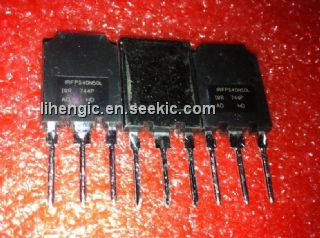

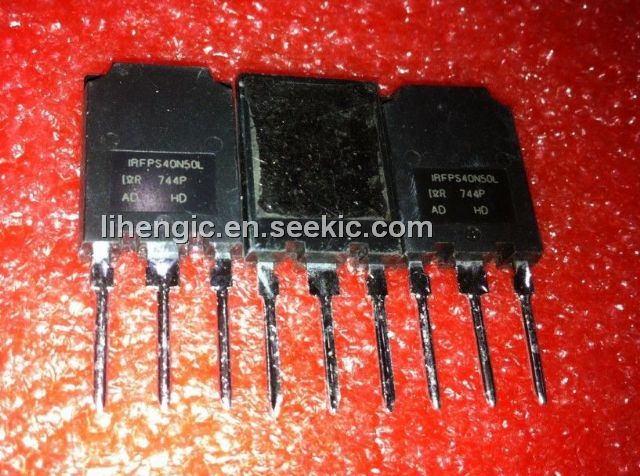

Product Summary

The IRFPS40N50L is a Hexfet power mosfet. Applications of the IRFPS40N50L include: Switch Mode Power Supply (SMPS) , UninterruptIble Power Supply, High Speed Power Switching, ZVS and High Frequency Circuit and PWM Inverters.

Parametrics

IRFPS40N50L absolute maximum ratings: (1) Continuous Drain Current, VGS@10V: 46A (ID@Tc=25°C) ; (2) Continuous Drain Current, VGS@10V: 29A (ID@Tc=100°C) ; (3) Pulsed Drain Current IDM: 180A; (4) Power Dissipation PD@Tc=25°C: 540W; (5) Linear Derating Factor: 4.3W/°C; (6) Gate-to-Source Voltage VGS: ±30V; (7) dv/dt Peak Diode Recovery dv/dt: 25V/ns; (8) Operating Junction and Storage Temperature Range: -55 to +150°C; (9) Soldering Temperature, for 10 seconds (1.6mm from case) : 300°C.

Features

IRFPS40N50L features: (1) Low Gate Charge Qg results in Simple Drive Requirement; (2) Improved Gate, Avalanche and Dynamicdv/dt Ruggedness; (3) Fully Characterized Capacitance and Avalanche Voltage and Current; (4) Low Trr and Soft Diode Recovery; (5) High Performance Optimised Anti-parallel Diode.

Diagrams

IRFPS40N50 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFPS40N50L
IRFPS40N50L
Vishay/Siliconix
MOSFET N-Chan 500V 46 Amp
Data Sheet
0-331: $12.95
331-500: $11.87
IRFPS40N50LPBF
IRFPS40N50LPBF
Vishay/Siliconix
MOSFET N-Chan 500V 46 Amp
Data Sheet
0-1: $7.15
1-10: $5.86
10-100: $5.29
100-250: $4.85
