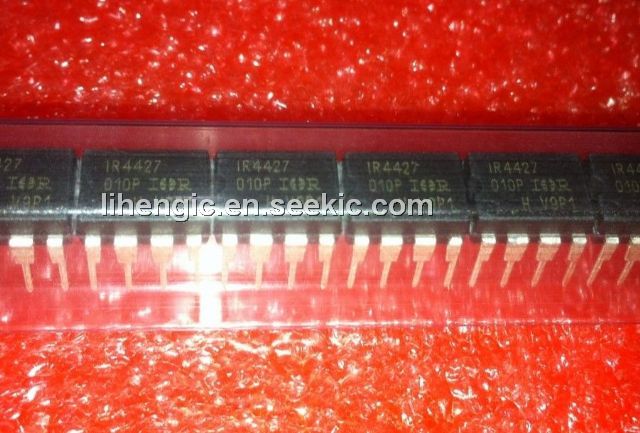

Product Summary
The IR4427 is a low voltage, high speed power MOSFET and IGBT driver.Proprietary latch immune CMOS technologies of the enable ruggedized monolithic construction. Logic inputs of the IR4427 are compatible with standard CMOS or LSTTL outputs. The IR4427 features a highpulse current buffer stage designed for minimum driver cross-conduction.
Parametrics
IR4427 absolute maximum ratings: (1) Fixed supply voltage Vs: -0.3V to 25V; (2) Output voltage VO: -0.3V to Vs +0.3V; (3) Logic input voltage VIN: -0.3 to VS+ 0.3V; (4) Package power dissipation @TA≤+25°C: 1.0W; (5) Thermal resistance, junction to ambient RthJA: 125°C/W; (6) Junction temperature Tj: 150°C; (7) Storage temperature Ts: -55 to 150°C; (8) Lead temperature (soldering, 10 seconds) TL: 300°C.
Features
IR4427 features: (1) Gate drive supply range from 6 to 20V; (2) MOS Schmitt-triggered inputs; (3) Matched propagation delay for both channels; (4) Outputs out of phase with inputs (IR4426); (5) OutputA out of phase with inputA ; (6) Also available LEAD-FREE.

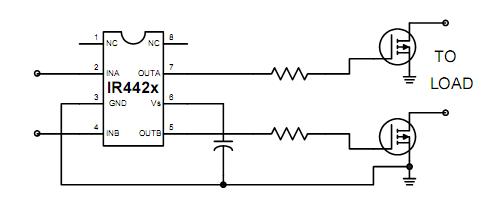

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

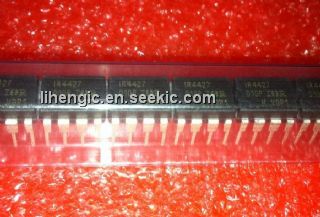

IR4427 |
IC DRIVER DUAL LOW SIDE 8-DIP |
Data Sheet |
Negotiable |
|
||||||||||||||
IR4427PBF |
International Rectifier |
Power Driver ICs Dual Lw Sd Drvr |
Data Sheet |
|
|
|||||||||||||
IR4427S |
IC DRIVER DUAL LOW SIDE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||
IR4427SPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
|||||||||||||
IR4427STR |
IC DRIVER DUAL LOW SIDE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||
IR4427STRPBF |
International Rectifier |
Power Driver ICs Dual Lw Sd Drvr |
Data Sheet |
|
|
