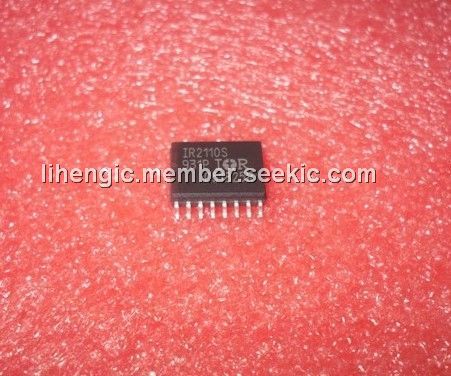

IR2110S

IR2110S, High and Low Side Driver, SOP-8, -0.3V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.20

PartNumber:: IR2110S

Brand:: International Rectifier - IR | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ally's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-07

From Other Seller

Part Number:IR2110S
US $0.50 - 1.20
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

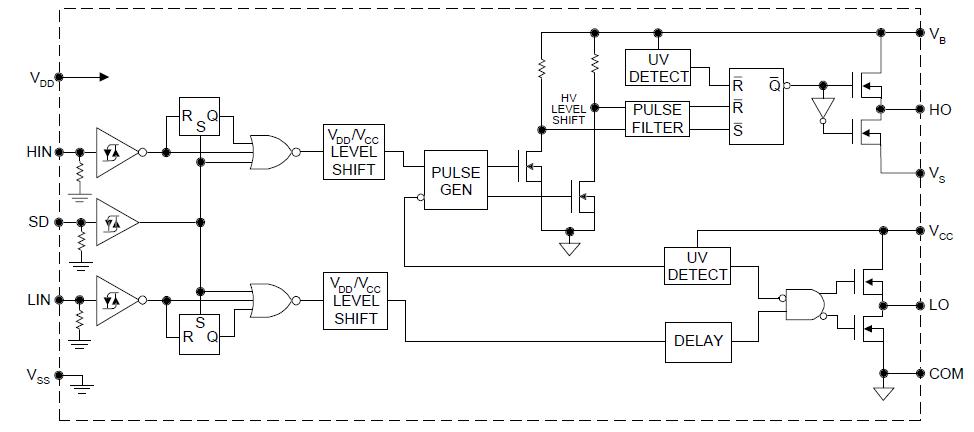

The IR2110S is a High and Low Side Driver. It ia high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channel. The IR2110S features a high pulse current buffer stage designed for minimum driver cross-conduction. The propagation delay is matched to simplify use in high frequency application. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts.

Parametrics

IR2110S absolute maximum ratings: (1)High side floating supply voltage: -0.3V to 525V; (2)High side floating supply offset voltage: VB - 25V to VB +0.3V; (3)High side floating output voltage: VS - 0.3V to VB + 0.3V; (4)Low side fixed supply voltage: -0.3V to 25V; (5)Low side output voltage: -0.3V to VCC + 0.3V; (6)Logic supply voltage: -0.3V to VSS + 25V; (7)Logic supply offset voltage: VCC - 25V to VCC + 0.3V; (8)Logic input voltage: VSS - 0.3V to VDD + 0.3V; (9)Storage temperature: -55℃ to 150℃.

Features

IR2110S features: (1)Floating channel designed for bootstrap operation; (2)Fully operational to +500V or +600V; (3)Tolerant to negative transient voltage dV/dt immune; (4)Gate drive supply range from 10 to 20V; (5)Undervoltage lockout for both channels; (6)3.3V logic compatible; (7)Separate logic supply range from 3.3V to 20V; (8)Logic and power ground ?V offset; (9)CMOS Schmitt-triggered inputs with pull-down; (10)Cycle by cycle edge-triggered shutdown logic; (11)Matched propagation delay for both channels; (12)Outputs in phase with inputs; (13)Also available LEAD-FREE.
