Product Summary

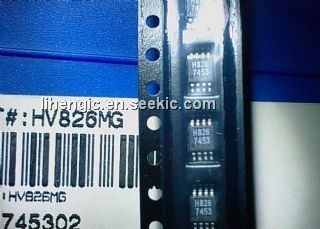

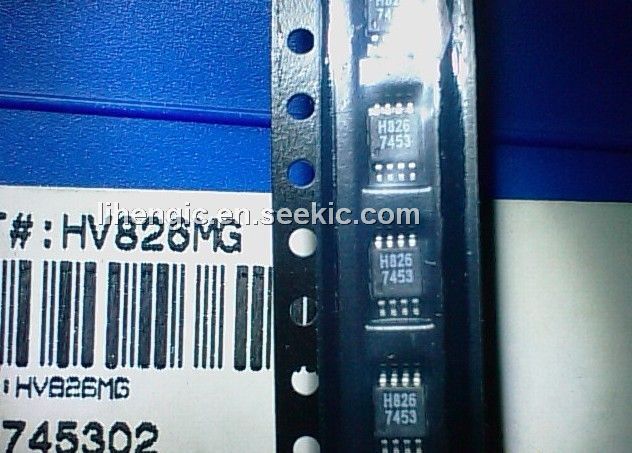

The HV826MG is a high voltage driver designed for driving EL lamp. The input supply voltage range of the HV826MG is from 1.8V to 3.5V. The HV826MG uses a single inductor and a minimum number of passive components. The nominal regulated output voltage that is applied to the EL lamp is ±80V. Applications of the HV826MG include: Mobile cellular phones, Pagers, Portable Transceivers, Remote Control Units and Calculators.
Parametrics
HV826MG absolute maximum ratings: (1) Supply Voltage, VDD: -0.5V to +4.5V; (2) Output Voltage, VCS: -0.5V to +100V; (3) Operating Temperature Range: -25°C to +85°C; (4) Storage Temperature Range: -65°C to +150°C; (5) MSOP-8 Power Dissipation: 250mW.
Features
HV826MG features: (1) 1.8V to 3.5V operating supply voltage; (2) DC to AC conversion; (3) Adjustable output frequency; (4) Adjustable switch frequency; (5) Output voltage regulation; (6) Enable/disable function.

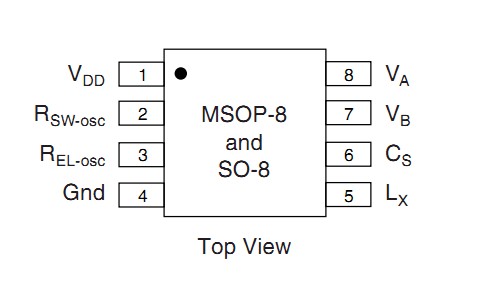

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HV826MG |
Supertex |
Display Drivers & Controllers HVCMOS |
Data Sheet |
Negotiable |
|
||||||||||
|
HV826MG-G |
Supertex |
Display Drivers & Controllers HVCMOS |
Data Sheet |
|
|
||||||||||
