Product Summary

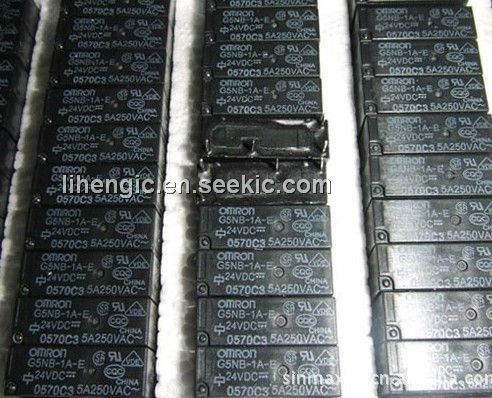

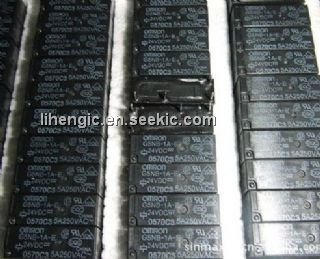

The G5NB-1A-E-24V is a slim compact relay with 3 A switching capability and 10-kV impulse Withstand voltage.

Parametrics

G5NB-1A-E-24V absolute maximum ratings: (1) Rated voltage: 5VDC to 24VDC; (2) Rated current: 8.3mA to 40mA; (3) Must operate voltage: 75% of rated voltage (max.) ; (4) Must release voltage: 10% of rated voltage (min.) ; (4) Max. voltage: Standard: 180% of rated voltage (at 23°C) , High-capacity: 170% of rated voltage (at 23°C) ; (5) Power consumption: Approx. 200mW.

Features

G5NB-1A-E-24V features: (1) Max size 20.5Lx7.2 Wx15.3W mm; (2) Standard models switch up to 3A High-capacity models switch up to 5A (AC loads only) ; (3) Low power consumption (200mW) ; (4) Semi-sealed and sealed types available; (5) UL recognized/CSA certified. VDE Approved; (5) RoHS Compliant.

Diagrams

G5NB-1A-E-24V Dimension
