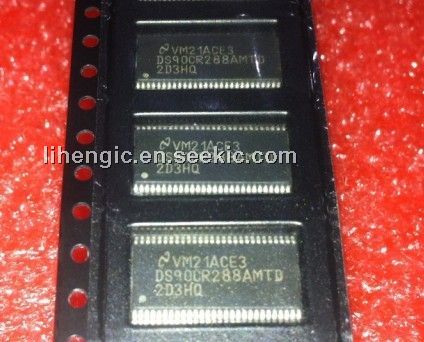

DS90CR288AMTD

LVDS 28-bit channel link, 3.3V, 300mA, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.17~3.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	3.70 / Piece
10 ~ 100 :	3.57 / Piece
100 ~ 1523 :	3.17 / Piece

PartNumber:: DS90CR288AMTD

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 1523/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-19

From Other Seller

Part Number:DS90CR288AMTD
US $3.17 - 3.70
DS90CR288AMTD

US $6.00 - 8.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

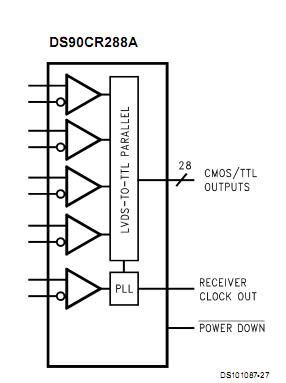

The DS90CR288AMTD is a 3.3V rising edge data strobe LVDS 28-bit channel link. The DS90CR288A receiver converts the four LVDS data streams back into 28 bits of CMOS/TTL data. This chipset of the DS90CR288AMTD is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.

Parametrics

DS90CR288AMTD absolute maximum ratings: (1) SupplyVoltage (Vcc) : -0.3V to +4V; (2) CMOS/TTL Input Voltage: -0.5V to (Vcc +0.3V) ; (3) CMOS/TTL Output Voltage: -0.3V to (Vcc +0.3V) ;(4) LVDS Receiver Input Voltage: -0.3V to (Vcc +0.3V) ; (5) LVDS Driver Output Voltage: -0.3V to (Vcc +0.3V) ;(6) LVDS Output Short Circuit Duration: Continuous; (7) Junction Temperature: 150°C; (8) Storage Temperature: -65°C to +150°C; (9) Lead Temperature (Soldering, 4sec.) : +260°C; (10) Maximum Package Power Dissipation@+25°C, MTD56 (TSSOP) Package: 1.63W; (11) Package Derating: 12.4mW/°C above +25°C; (12) ESD Rating (HBM, 1.5kΩ, 100pF) ＞7kV, (EIAJ, 0Ω, 200pF) ＞700V, Latch Up Tolerance@±300mA.

Features

DS90CR288AMTD features: (1) 20 to 85MHZ shift clock support; (2) 50% duty cycle on receiver output clock; (3) Best-in-Class Set&Hold Times on TxINPUTs; (4) Low power consumption; (5) ±1Vcommon mode range (around +1.2V) ; (6) Up to 2.38 Gbps throughput; (7) Upto 297.5 Megabytes/sec bandwidth; (8) Compatible with TIA/EIA-644LVDS standard; (9) Low profile 56-lead TSSOP package; (10) 345mV (typ) swing LVDS devices for low EMI.
