Product Summary
The DS2431 is a 1024-bit, 1-Wire EEPROM chip organized as four memory pages of 256 bits each. The DS2431 communicates over the single-conductor 1-Wire bus. Applications of the DS2431 include: Accessory/PC Board Identification, Medical Sensor Calibration Data Storage, Analog Sensor Calibration Including IEEE-P1451.4 Smart Sensors, Ink and Toner Print Cartridge Identification and After-Market Management of Consumables.
Parametrics
DS2431 absolute maximum ratings: (1) I/O Voltage to GND: -0.5V, +6V; (2) I/O Sink Current: 20mA; (3) Operating Temperature Range: -40°C to +85°C; (4) Junction Temperature: +150°C; (5) Storage Temperature Range: -40°C to +85°C; (5) Soldering Temperature: -40 to +185°C.
Features
DS2431 features: (1) 1024 Bits of EEPROM Memory Partitioned into Four Pages of 256 Bits; (2) Individual Memory Pages can be Permanently Write Protected or Put in EPROM-Emulation Mode; (3) Switchpoint Hysteresis and Filtering to Optimize Performance in the Presence of Noise; (4) IEC 1000-4-2 Level 4 ESD Protection (8kV Contact, 15kV Air) ; (5) Reads and Writes Over a Wide Voltage Range of 2.8V to 5.25V from -40 to +85°C; (6) Communicates to Host with a Single Digital Signal at 15.4kbps or 111kbps Using 1-Wire Protocol.
Diagrams

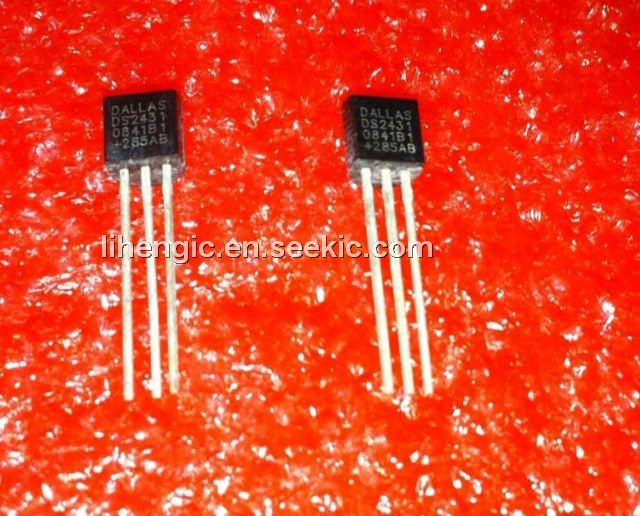

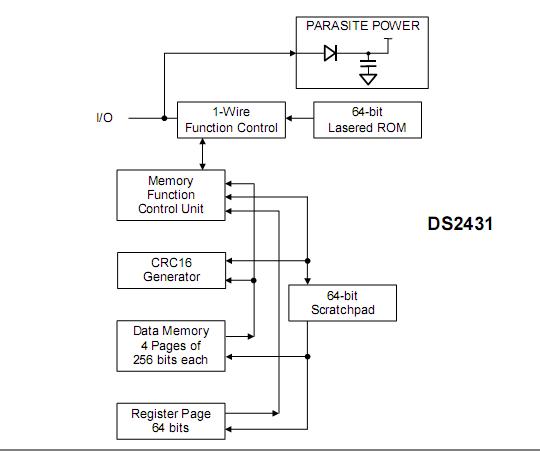

alt=
