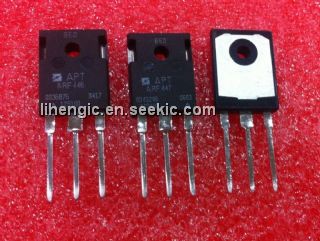

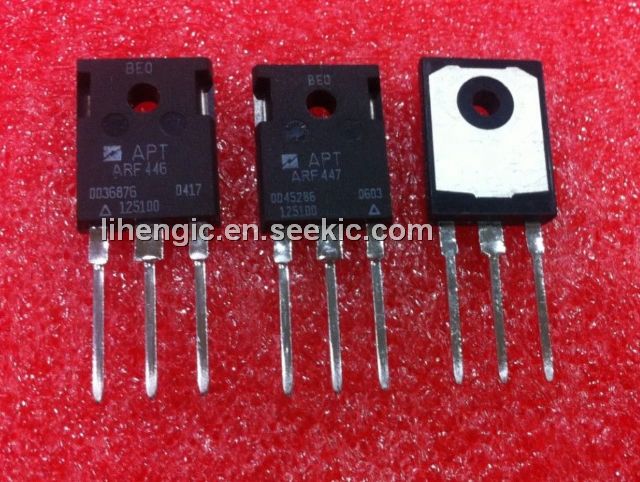

ARF446

RF power mosfet, 900V, 6.5A, TO-247CS

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.13~5.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
50 ~ 100 :	5.15 / Piece
150 ~ 200 :	5.14 / Piece
250 ~ 300 :	5.13 / Piece

PartNumber:: ARF446

Brand:: APT - APT | Pack: | D/C: 06+

Availability:: Supply Ability: 500/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-19

From Other Seller

Part Number:ARF446
US $5.13 - 5.15
Quantity:

piece

Product Summary

The ARF446 is a RF power mosfet. The ARF446 comprises a symmetric pair of common source RF power transistors designed for push-pull scientific, commercial, medical and industrial RF power amplifier applications up to 65MHz.

Parametrics

ARF446 absolute maximum ratings: (1) Drain-Source Voltage VDSS: 900V; (2) Drain-Gate Voltage VDGO: 900V; (3) Continuous Drain Current@Tc=25°C, ID: 6.5A; (4) Gate-Source Voltage, VGS: ±30V; (5) Total Power Dissipation@Tc=25°C, PD: 230W; (6) Junction to Case Rθjc: 0.55°C/W; (7) Operating and Storage Junction Temperature Range: -55 to +150°C; (8) Lead Temperature: 0.063 inch from Case for 10 Sec. TL: 300°C.

Features

ARF446 features: (1) Output Power = 250 Watts; (2) Gain = 15dB (Class C) ; (3) Efficiency=75%; (4) Low Cost Common Source RF Package; (5) Very High Breakdown for Improved Ruggedness; (6) Low Thermal Resistance; (7) Nitride Passivated Die for Improved Reliability.
