Product Summary

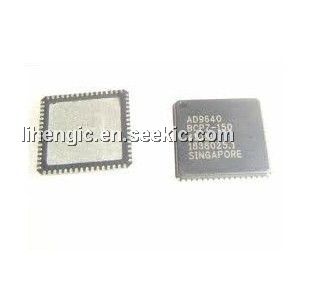

The AD9640BCPZ-150 is a dual 14-Bit 150 MSPS ADC. The AD9640BCPZ-150 is designed to support communications applications where low cost, small size, and versatility are desired. The AD9640BCPZ-150 has several functions which simply the AGC function in the system receiver. The output data of the AD9640BCPZ-150 can be routed directly to the two external 14-bit output ports.
Parametrics
AD9640BCPZ-150 absolute maximum ratings: (1) AVDD, DVDD to AGND: -0.3V to +2.0V; (2) DRVDD to DRGND: -0.3V to +3.9V; (3) AGND to DRGND: -0.3V to +0.3V; (4) VIN+A/B, VIN-A/B to AGND: -0.3V to AVDD + 0.2V; (5) CSB to AGND: -0.3 V to +3.9V ; (6) D0A/B through D13A/B to DRGND: -0.3V to DRVDD + 0.3V; (7) FD0A/B through FD3A/B to DRGND: -0.3V to DRVDD + 0.3V; (8) DCOA/B to DRGND: -0.3V to DRVDD + 0.3V; (9) VREF to AGND: -0.3V to AVDD + 0.3V; (10) SENSE to AGND: -0.3V to AVDD + 0.2V.
Features
AD9640BCPZ-150 features: (1) SNR=71.7dBc (72.7dBFS) to 70MHz@150MSPS; (2) SFDR = 85 dBc to 70MHz@150MSPS; (3) Low Power: 780mW; (4) 1.8V analog supply operation; (5) 1.8V to 3.3V CMOS output supply or 1.8V LVDS supply; (6) Integer 1 to 8 Input Clock Divider; (7) IF sampling frequencies to 450MHz; (8) Internal ADC voltage reference; (9) Integrated ADC sample-and-hold inputs; (10) ADC clock duty cycle stabilizer; (11) 95dB channel isolation/crosstalk; (12) Energy-saving power-down modes; (13) Integrated Receive Features: ast Detect/Threshold Bits, Composite Signal monitor.

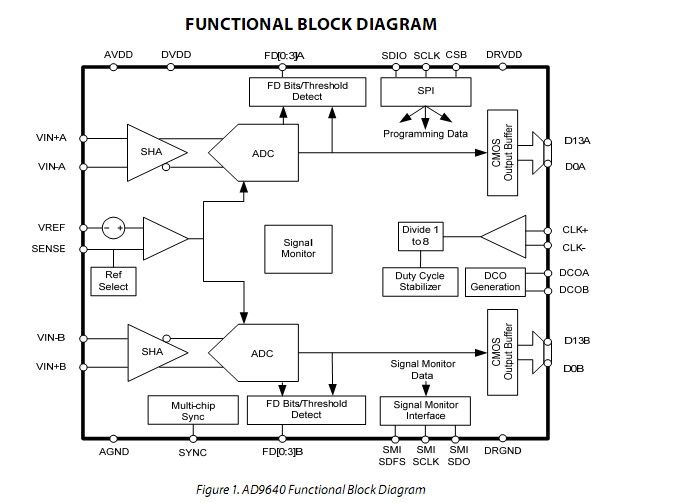

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD9640BCPZ-150 |
Analog Devices Inc |
IC ADC 14BIT 150MSP 1.8V 64LFCSP |
Data Sheet |
|
|
|||||||||||||||||
