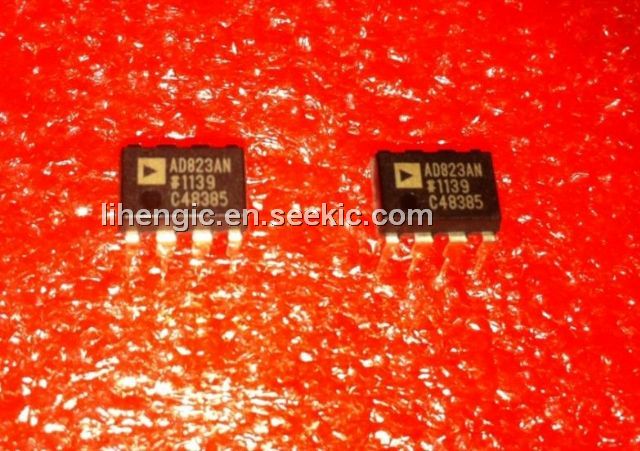

Product Summary

The AD823AN is a dual precision, 16 MHz, JFET input op amp that can operate from a single supply of +3.0 V to +36 V, or dual supplies of ±1.5V to ±18V. The AD823AN has true single supply capability with an input voltage range extending below ground in single supply mode. Output voltage swing of the AD823AN extends to within 50 mV of each rail for IOUT≤ 100μA providing outstanding output dynamic range.

Parametrics

AD823AN absolute maximum ratings: (1) Supply Voltage: +36V; (2) Internal Power Dissipation Plastic Package (N) : 1.3 Watts, Small Outline Package (R) : 0.9 Watts; (3) Input Voltage (Common Mode) : ±Vs; (4) Differential Input Voltage: ±1.2V; (5) Output Short Circuit Duration: Observe Power Derating Curves; (6) Storage Temperature Range N, R: -65°C to +125°C; (7) Operating Temperature Range: -40°C to +85°C; (8) Lead Temperature Range (Soldering 10sec) : +300°C.

Features

AD823AN features: (1) Single Supply Operation, Output Swings Rail to Rail, Input Voltage Range Extends Below Ground, Single Supply Capability from +3V to +36V; (2) Capacitive Load Drive of 500 pF, G=+1; (3) Excellent AC Performance on 2.6 mA/Amplifier; (4) Good DC Performance; (5) No Phase Inversion with Inputs to the Supply Rails; (6) 108dBc Worst Harmonic@20kH; (7) 25pA Max Input Bias Current; (8) 350ns Settling Time to 0.01% (2V Step) .

Diagrams

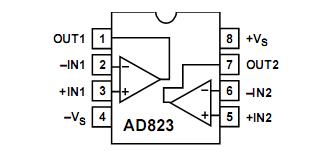

AD823AN Pin Configuration=

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD823AN
AD823AN
Analog Devices Inc
IC OPAMP FET DUAL 16MHZ R-R 8DIP
Data Sheet
1-25: $2.83
25-100: $2.39
100-250: $2.30
250-500: $2.25
500-1000: $2.21
1000-5000: $2.16
AD823ANZ
AD823ANZ

IC OPAMP JFET R-R DUAL LN 8DIP
Data Sheet
0-1: $3.81
1-10: $3.43
10-25: $3.12
25-100: $2.82
100-250: $2.59
250-500: $2.36
500-1000: $2.06
1000-2500: $2.03
