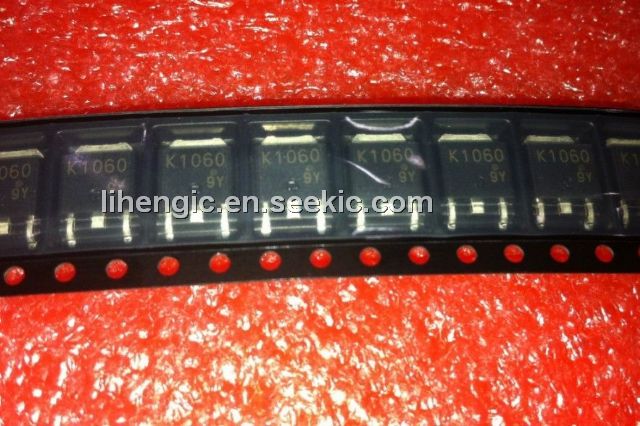

Product Summary

The 2SK1060 is a filed effect transisor of TOSGIBA. The applications of the 2SK106 include: high speed switching, analog switch and interface.

Parametrics

2SK1060 absolute maximum ratings: (1) drain-source voltage, VDS: 60V; (2) gate-source voltage VGSS: ±20V; (3) drain current DC ID: 200mA, pulse IDP: 800mA; (4) drain power dissipation (Ta=25°C) PD: 300mW; (5) channel temperature Tchaikovsky：150°C; (6) storage temperature range: -55 to 150°C.

Features

2SK1060 features: (1) excellent swithcing times: ton=14ns (TYP) ; (2) high forward transfer admittance; (3) Low on resistance: RDS (on ) =0.6Ω; (4) enhancement-mode; (5) complementary to 2SJ167.

Diagrams

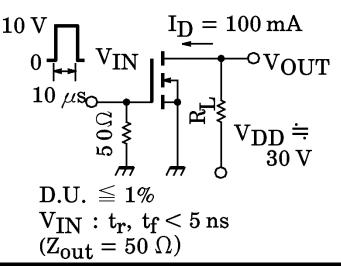

2SK1060 circuit
