Product Summary

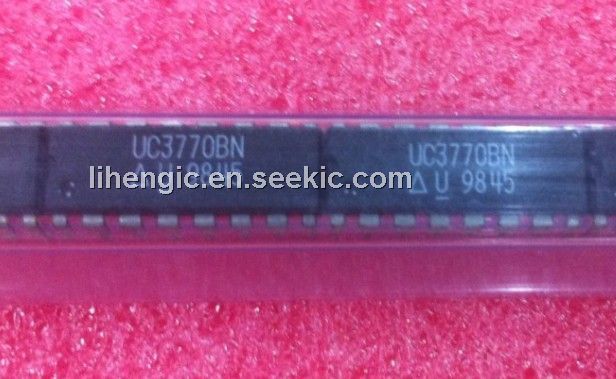

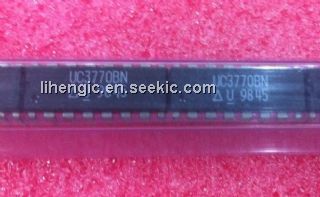

The UC3770BN is a high-performance full bridge driver that offers higher current and lower saturation voltage than the UC3717 and the UC3770. Included in the UC3770BN is LS-TTL compatible logic inputs, current sense, monostable, thermal shut-down, and a power H-bridge output stage. The UC3770BN is specified for operation from 0°C to 70°C ambient.
Parametrics
UC3770BN absolute maximum ratings: (1) Logic Supply Voltage,VCC: 7V; (2) Output Supply Voltage,VMM: 50V; (3) Logic Input Voltage (Pins 7, 8, 9) : 6V; (4) Analog Input Voltage (Pin 10) : Vcc; (5) Reference Input Voltage (7) Analog Input Current (Pins 10, 11) : -10mA; (8) Output Current (Pins 1, 15) : ±2mA; (9) Junction Temperature, Tj: +150°C.
Features
UC3770BN features: (1) Full-Step, Half-Step and Micro-Step Capability; (2) Bipolar Output Current up to 2A; (3) Wide Range of Motor Supply Voltage: 10-50V; (4) Low Saturation Voltage; (5) Wide Range of Current Control: 5mA-2A; (6) Current Levels Selected in Steps or Varied Continuously; (7) Thermal Protection and Soft Intervention.

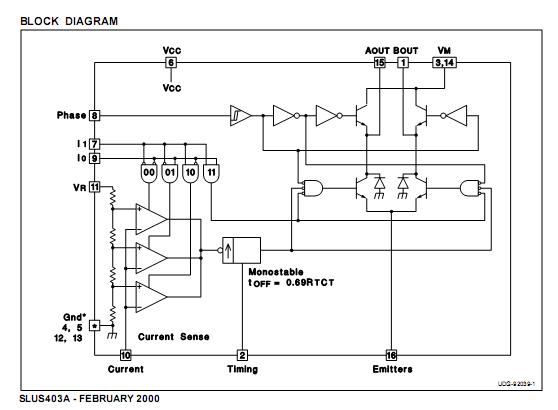

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UC3770BN |
Texas Instruments |
Motor / Motion / Ignition Controllers & Drivers HP Stepper |
Data Sheet |
|
|
||||||||||||
|
UC3770BNG4 |
Texas Instruments |
Motor / Motion / Ignition Controllers & Drivers High Perf Stepper Motor Drive Circuit |
Data Sheet |
|
|
||||||||||||
