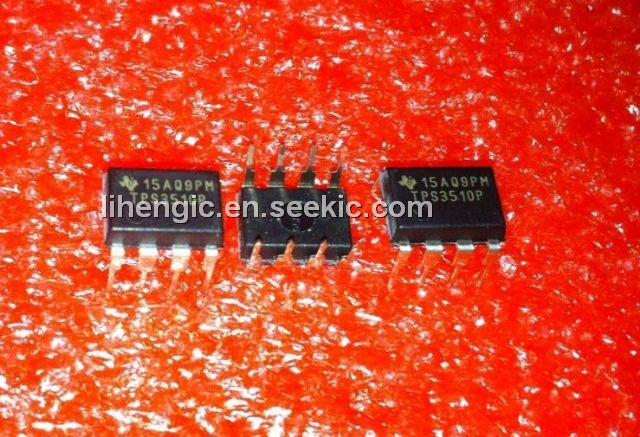

Product Summary

TPS3510P is a PC power supply supervisor. The TPS3510P is designed to minimize external components of personal-computer switching power supply systems. The TPS3510P provides protection circuits, power good indicator, fault protection output (FPO) and PSON control.

Parametrics

TPS3510P absolute maximum ratings: (1) Supply voltage, VDD: 16v; (2) Output voltage V0, FPO:16V, PGO: 8V; (3) All other pins: -0.3V to 16V; (4) Operating free-air temperature range, TA: -40°C to 85°C; (5) Storage temperature range, Tstg: -65°C to 150°C; (6) Soldering temperature: 260°C.

Features

TPS3510P features: (1) Overvoltage Protection and Lockout for 12V, 5V, 3.3V; (2) Undervoltage Protection and Lockout for 5V and 3.3V; (3) Fault Protection Output With Open-Drain Output Stage; (4) Open-Drain Power Good Output Signal for Power Good Input, 3.0V and 5V; (5) Power Good Delay; 300-ms TPS3510; (6) Wide Supply Voltage Range From 4V to 15V; (7) 73-µs Width Noise Deglitches; (8) 38-ms PSON Control Debounce; (9) 75-ms Delay for 5-V and 3.3-V Power Supply Short-Circuit Turnon Protection; (10) 2.3-ms PSON Control to FPO Turnoff Delay.

Diagrams

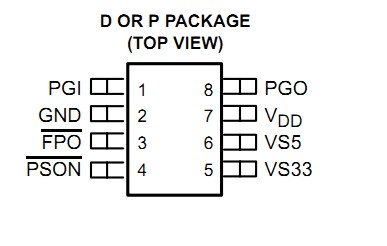

TPS3510P Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS3510P
TPS3510P
Texas Instruments
Supervisory Circuits 3.5V Pwr Supply Mntr
Data Sheet
0-1: $0.72
1-25: $0.57
25-100: $0.50
100-250: $0.44
