Product Summary

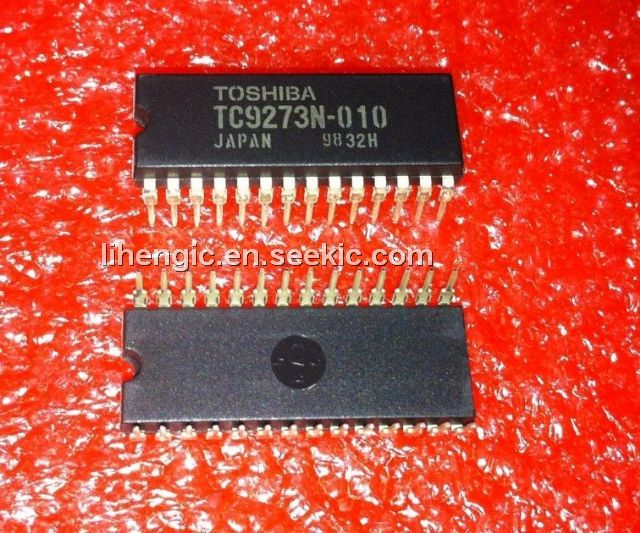

The TC9273N-010 is an analog swtich array IC developed for use in audio equipment such as home stereo sets. Swtich connection layouts of theTC9273N-010 can be customized for different sets, thus simplifying the external wiring.
Parametrics
TC9273N-010 maximum ratings: (1) Power Supply Voltage VDD-VSS: -0.3V to 36V; (2) Power Supply Voltage VDD-GND: -0.3V to 20V; (3) GND Input Voltage VIN: -0.3V to VDD +0.3V; (4) VSS Input Voltage VIN: VSS -0.3V to VDD +0.3V; (5) Power Dissipation PD: 300mW; (6) Operating Temperature: -40 to 85°C; (7) Storage Temperature: -65°C to 150°C.
Features
TC9273N-010 features: (1) 18 analog swtiches×2 channels; (2) An aluminium mask process allows switches connections to be customized; (3) Switches are controlled by serial data; (4) Buil-in 5V microcomputer interface; (5) Shrink DIP or flat package.
Diagrams
