Product Summary
The SN75ALS180DR differential driver and receiver pairs are integrated circuits designed for bidirectional data communication on multipoint bus-transmission lines. The SN75ALS180DR is designed for balanced transmission lines and meet TIA/EIA-422-B, TIA/EIA-485-A, and ITU Recommendation V.11.
Parametrics
SN75ALS180DR absolute maximum ratings: (1) Supply voltage, VCC: 7V; (2) Voltage range at any bus terminal: -10V to 15V; (3) Enable input voltage, VI: 5.5V; (4) Package thermal impedance, θJA: 86°C/W; (5) Operating virtual junction temperature, Tj: 150°C; (6) Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260°C; (7) Storage temperature range, Tst: -65°C to 150°C.
Features
SN75ALS180DR features: (1) Meet or Exceed the Requirements of TIA/EIA-422-B, TIA/EIA-485-A and ITU Recommendation V.11; (2) High-Speed Advanced Low-Power Schottky Circuitry; (3) Designed for 25-Mbaud Operation in Both Serial and Parallel Applications; (4) Low Skew Between Devices: 6ns Max; (5) Low Supply-Current Requirements: 30mA max; (6) Individual Driver and Receiver I/O Pins With Dual Vccand Dual GND; (7) Driver Output Capacity: ±60mA; (8) Thermal Shutdown Protection; (9) Receiver Input Hysteresis: 60mV Typ; (10) Glitch-Free Power-Up and Power-Down Protection.

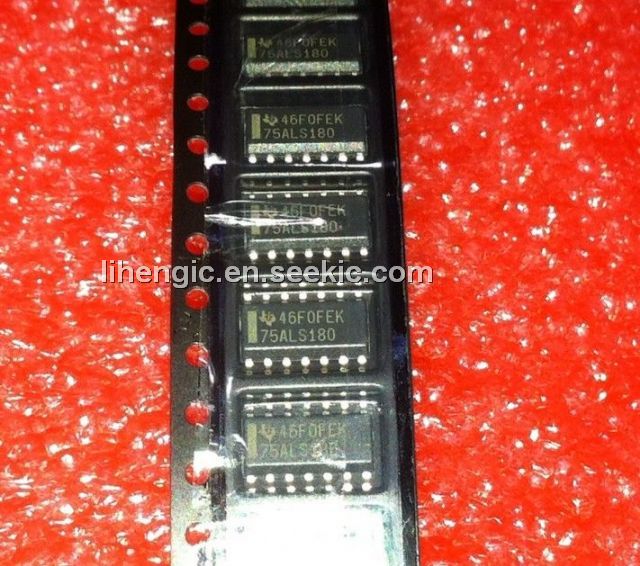

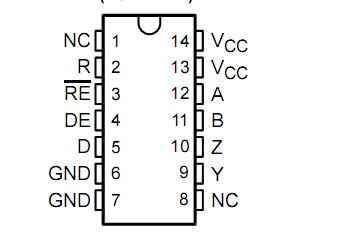

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN75ALS180DR |
Texas Instruments |
Buffers & Line Drivers Diff Driver And Receiver Pair |
Data Sheet |
|
|
||||||||||||
|
SN75ALS180DRE4 |
Texas Instruments |
Bus Transceivers Diff Driver And Receiver Pair |
Data Sheet |
|
|
||||||||||||
|
SN75ALS180DRG4 |
Texas Instruments |
RS-485 Interface IC Differential Driver And Receiver Pair |
Data Sheet |
|
|
||||||||||||
