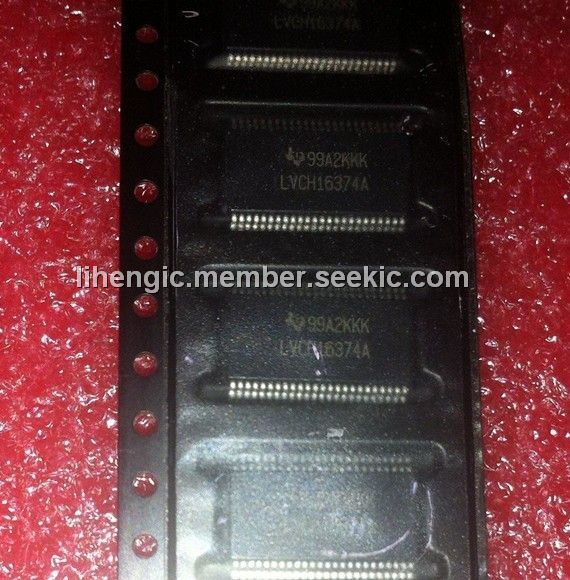

SN74LVCH16374ADGGR

SN74LVCH16374ADGGR, 16-bit edge-triggered D-type flip-flop, –50 mA, TSSOP48

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.58 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.35~0.58

PartNumber:: SN74LVCH16374ADGGR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ally's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-06

From Other Seller

Part Number:SN74LVCH16374ADGGR
US $0.35 - 0.58
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SN74LVCH16374ADGGR is a 16-bit edge-triggered D-type flip-flop which is designed for 1.65-V to 3.6-V VCC operation. The SN74LVCH16374ADGGR is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. It can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CLK) input, the Q outputs of the flip-flop take on the logic levels set up at the data inputs.

Parametrics

SN74LVCH16374ADGGR absolute maximum ratings: (1)Supply voltage range: –0.5 V to 6.5 V; (2)Input voltage range: –0.5 V to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state: –0.5 V to 6.5 V; (4)Voltage range applied to any output in the high or low state: –0.5 V to VCC+0.5 V; (5)Input clamp current: –50 mA; (6)Output clamp current: –50 mA; (7)Continuous output current: ±50 mA; (8)Continuous current through each VCC or GND: ±100 mA; (9)Storage temperature range: –65℃ to 150℃.

Features

SN74LVCH16374ADGGR features: (1)Operates From 1.65 V to 3.6 V; (2)Inputs Accept Voltages to 5.5 V; (3)Max tpd of 4.5 ns at 3.3 V; (4)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (5)Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃; (6)Supports Mixed-Mode Signal Operation on All Ports (5-V Input and Output Voltages With 3.3-V VCC); (7)Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors; (8)Latch-Up Performance Exceeds 250 mA Per JESD 17; (9)ESD Protection Exceeds JESD 22; (10)2000-V Human-Body Model (A114-A); (11)1000-V Charged-Device Model (C101).
