Product Summary

The MSA-0886 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost, surface mount plastic package. The MSA-0886 is designed for use as a general purpose 50Ω gain block above 0.5GHz and can be used as a high gain transistor below this frequency. Typical applications of the MSA-0886 include narrow and moderate band IF and RF amplifiers in commercial and industrial applications.

Parametrics

MSA-0886 absolute maximum ratings: (1) Device Current: 65mA; (2) Power Dissipation: 500mW; (3) RF Input Power: +13dBm; (4) Junction Temperature: 150°C; (5) Storage Temperature: -65°C to 150°C.

Features

MSA-0886 features: (1) Usable Gain to 5.5GHz; (2) High Gain: 32.5dB Typical at 0.1GHz, 22.5dB Typical at 1.0GHz; (3) Low Noise Figure: 3.3dB Typical at 1.0GHz; (4) Surface Mount Plastic Package; (5) Tape-and-Reel Packaging Option Available.

Diagrams

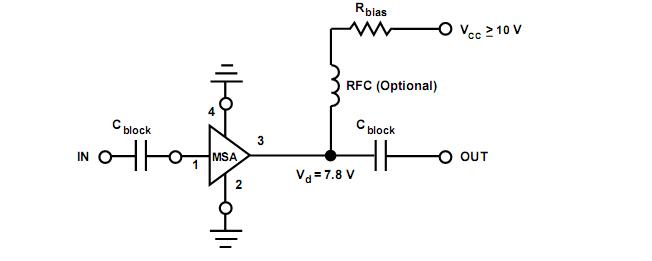

MSA-0886 Circuit
