Product Summary

The L2726 is a monolithic integrated circuit in SO-20 package intended for use as power operational amplifiers in a wide range of applications including servo amplifiers and power supplies. The L2726 is particularly indicated for driving inductive loads, asmotor and finds applications in compact-disc VCR automative, etc.

Parametrics

L2726 absolute maximum ratings: (1) operational amplifier, 1A, 50V, Vs: 28V; (2) PeakSupplyVoltage(50ms) Vs: 50V; (3) Input Voltage Vi: Vs; (4) Differential Input Voltage Vi: ±Vs; (5) I DC Output Current Io: 1A; (6) Peak Output Current(non repetitive) Ip: 1.5A; (7) Power Dissipation at Tamb=85°C: 1W, Tcase=75°C: 5W; (8) Operating Temperature Top: -40 to 85°C; (9) Storageand Junction Temperature: -40 to 150°C.

Features

L2726 features: (1) output current to 1A; (2) operates at low voltages; (3) single or spilt supply; (4) large common-,ode and differential mode range; (5) low saturation voltage; (6) thermal shutdown; (7) clamp diode.

Diagrams

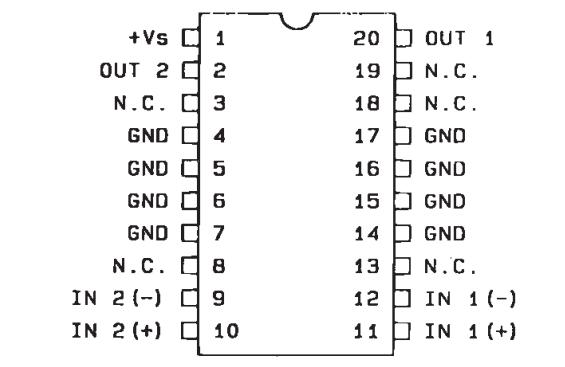

L2726 Pin Configurattion

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L2726013TR
L2726013TR
STMicroelectronics
Operational Amplifiers - Op Amps LDO AMPLIFIER
Data Sheet
0-1: $1.27
1-10: $1.02
10-100: $0.92
100-250: $0.81
L2726
L2726
STMicroelectronics
Operational Amplifiers - Op Amps Dual Hi-Gain Hi-Out
Data Sheet
0-460: $0.87
460-500: $0.75
500-1000: $0.57
1000-2000: $0.53
