Product Summary

The KL5C80A12CF is Z80 compatible high-speed microcontroller.

Features

KL5C80A12CF features: (1) CPU core; (2) instruction set; (3) high speed opertaion; (4) operational clock frquency; (5)minmum exectution time; (6) address space; (7) timer/counter; (8) paraller port; (9) serial channel; (10) on chip memory; (11) external bus interface; (12) other functions; (13) 100-pin QFP package; (14) software debug tool.

Diagrams

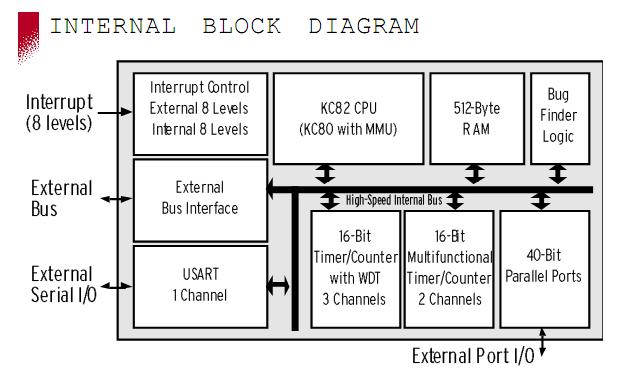

KL5C80A12CF Block Diagram
