Product Summary

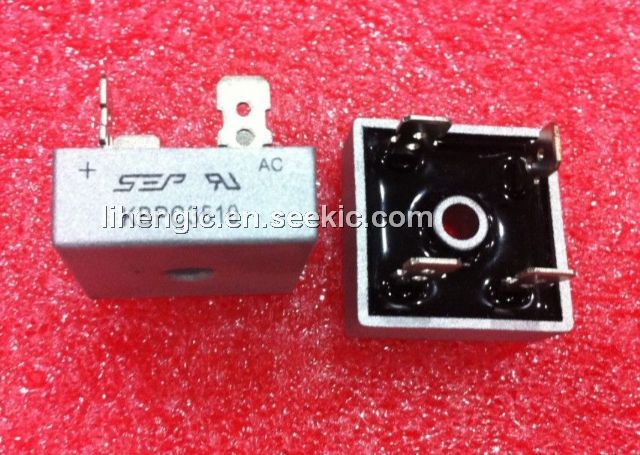

The KBPC3510 is a silicon bridge rectifier. And the reverse voltage of the KBPC3510 is 50 to 1000V. And the current of the KBPC3510 is 10/15/25/35/50A.
Parametrics
KBPC3510 absolute maximum ratings: (1) Maximum reverse peak repetitive voltage VRRM: 1000V; (2) Maximum RMS bridge input voltage: 700V; (3) Maximum DC Blocking Voltage: 1000V; (4) Maximum average forward rectified output current@Tc=55°C I (AV) : 50A; (5) Operating temperature range : -55 to +125°C; (6) Storage temperature range: -55 to +150°C.
Features
KBPC3510 features: (1) surge overload-240-500A peak; (2) low forward voltage drop; (3) electrically isolated base-2000 volts; (4) materials used as carries U/L recognition.

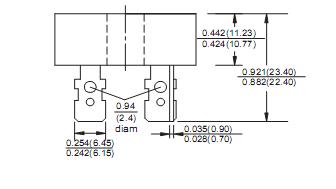

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KBPC3510 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
KBPC3510FW |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
KBPC3510W-G |
Comchip Technology |
Bridge Rectifiers DIODE RECT BRIDGE 35A 1Kv |
Data Sheet |
|
|
||||||||||||
|
KBPC3510-G |
Comchip Technology |
Bridge Rectifiers DIODE RECT BRIDGE 35A 1000V |
Data Sheet |
|
|
||||||||||||
|
KBPC3510W |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
