Product Summary

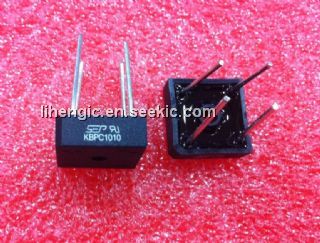

The KBPC1010 is a 10A high current bridge rectifier.
Parametrics
KBPC1010 absolute maximum ratings: (1) Peak Repetitive Reverse Voltage VRRM, Working Peak Reverse Voltage VRWM, DC Blocking Voltage VR: 1000V; (2) RMS Reverse Voltage VR(RMS) : 700V; (3) Average Rectified Output Current@TA=50°C, Io: 10A; (4) Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) IFSN: 200A; (5) Forward Voltage (per element) @IF=5/0A, VFM: 1.2V; (6) Peak Reverse Current@Tc=25°C, IRM: 1.0μA; (2) At Rated DC Blocking Voltage@Tc=125°C, IRM: 1.0mA; (7) Typical Junction Capacitance Cj: 300pF; (8) Typical Thermal Resistance RθJC: 6.3K/W; (9) RMS Isolation Voltage from Case to Lead VISO: 2500V; (10) Operating and Storage Temperature Range: -65 to +150°C.
Features
KBPC1010 features: (1) Diffused Junction; (2) Low Reverse Leakage Current; (3) Low Power Loss, High Efficiency; (4) Electrically Isolated Metal Case for Maximum Heat Dissipation; (5) Case to Terminal Isolation Voltage 2500V; (6) UL Recognized File # E157705.

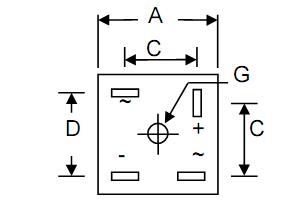

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KBPC1010 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
KBPC1010/W |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
KBPC1010-G |
|
RECTIFIER BRIDGE 10A 1000V KBPC |
Data Sheet |
|
|
||||||
|
KBPC1010G/W |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
KBPC1010GS |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
KBPC1010P |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
KBPC1010W-G |
|
RECTIFIER BRIDGE 10A 1000V KBPCW |
Data Sheet |
|
|
||||||
|
KBPC1010P/W |
Other |
|
Data Sheet |
Negotiable |
|
||||||
