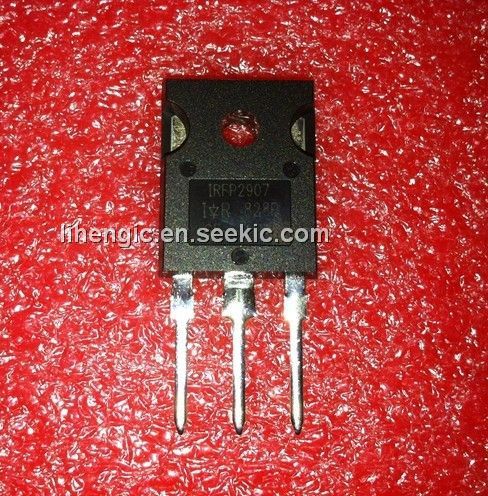

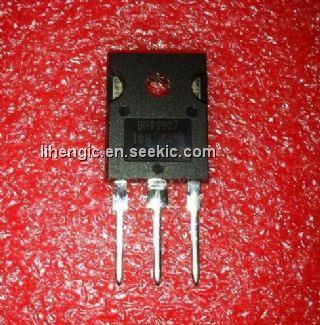

Product Summary

The IRFP2907 is an automative mosfet. Specifically designed for Automotive applications, utilizes the lastest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of the IRFP2907 are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. Applications of the IRFP2907 include: Integrated Starter Alternator and 42 Volts Automotive Electrical Systems.

Parametrics

IRFP2907 absolute maximum ratings: (1) Continuous Drain Current, VGS@10V, ID@Tc=25°C: 209A; (2) CContinuous Drain Current, VGS@10V, ID@Tc=100°C: 108A; (3) Pulsed Drain Current IDM: 840A; (4) Power Dissipation, PD@Tc=25°C: 470W; (5) Linear Derating Factor: 3.1W/°C; (6) Gate-to-Source Voltage VGS: ±20V; (7) Single Pulse Avalanche Energy: 1970mJ; (8) Avalanche Current: See fig. 12a, 12b, 15, 16A; (9) Repetitive Avalanche Energy: ee fig. 12a, 12b, 15, 16mJ; (10) Peak Diode Recovery dv/dt: 5.0V/ns; (11) Operating Junction and Storage Temperature Range TJ, Tstg: -55 to +175°C; (12) Soldering Temperature, for 10 seconds: 300 (1.6mm from case ) ; (12) Mounting Torque, 6-32 or M3 screw: 10 lbf . in (1.1N .m) .

Features

IRFP2907 features: (1) Advanced Process Technology; (2) Ultra Low On-Resistance; (3) Dynamic dv/dt Rating; (4) 175°C Operating Temperatur; (5) Fast Switching; (6) Repetitive Avalanche Allowed up to Tjmax.

Diagrams

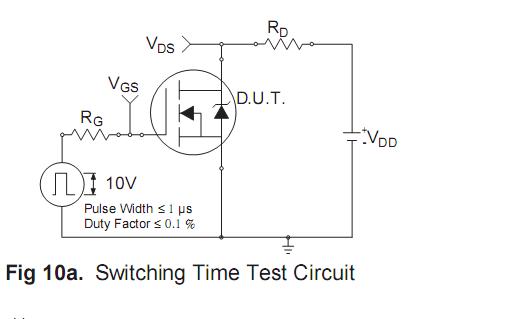

IRFP2907 Test Circuit
