Product Summary

The IRFBC40A is a SMPS mosfet. Applications of the IRFBC40A include: Switch Mode Power Supply (SMPS) , Uninterruptable Power Supply and High speed power switching.

Parametrics

IRFBC40A absolute maximum ratings: (1) Continuous Drain Current,VGS@10V, ID@TC=25°C, : 6.2a; (2) CContinuous Drain Current, VGS@10V, ID@TC=100°C: 3.9A; (3) Pulsed Drain Current IDM: 2.5A; (4) Power Dissipation, PD@TC=25°C: 125W; (5) Linear Derating Factor: 1.0W/°C; (6) Gate-to-Source Voltage: ±30V; (7) Peak Diode Recovery dv/dt: 6.0V/ns; (8) Operating Junction and Storage Temperature Range Tj: -55°C to +150°C; (9) Soldering Temperature, for 10 seconds: 300 (1.6mm from case) ; (10) Mounting torqe, 6-32 or M3 screw: 10 lbf.in (1.1N.m) .

Features

IRFBC40A features: (1) Low Gate Charge Qg results in Simple Drive Requirement; (2) Improved Gate, Avalanche and Dynamic dv/dt Ruggedness; (3) Fully Characterized Capacitance and Avalanche Voltage and Current; (4) Effective Coss Specified ( See AN 1001) .

Diagrams

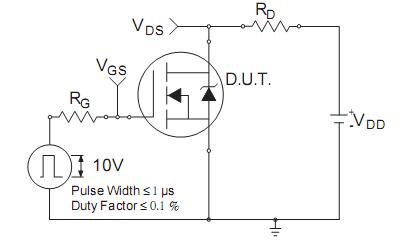

IRFBC40A Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

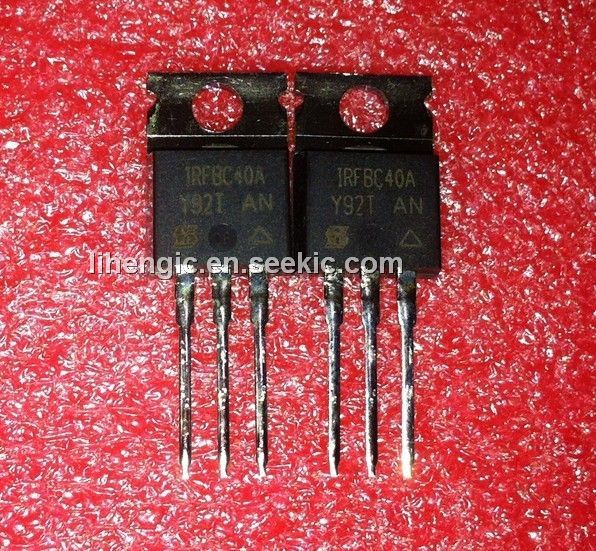

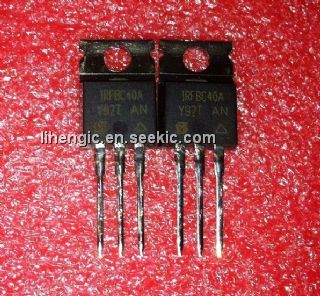

IRFBC40A
IRFBC40A

Vishay/Siliconix

MOSFET N-Chan 600V 6.2 Amp

Data Sheet

0-725: $1.59
725-1000: $1.52
1000-2000: $1.49
