Product Summary
The HV20220PJ is a low charge injection 8-channel high-voltage analog switch integrated circuit intended for use in applications requiring high voltage switching controlled by low voltage control signals, such as ultrasound imaging and printers. The HV20220PJ is suitable for various combinations of high voltage supplies. Applications of the HV20220PJ include: Medical ultrasound imaging and Piezoelectric transducer drivers.
Parametrics
HV20220P absolute maximum ratings: (1) VDD logic power supply voltage: -0.5V to +5V; (2) VPP-VNN supply voltage: 220V; (3) Vpp positive high voltage supply: -0.5V to VNN +200V; (4) VNN negative high voltage supply: +0.5V to -200V; (5) Logic input voltages: -0.5V to VDD +0.3V; (6) Analog signal range: VNN to VPP; (7) Peak analog signal current/channel: 3.0A; (8) Storage temperature: -65°C to +150°C; (9) Power dissipation: 1.2W.
Features
HV20220P features: (1) HVCMOS technology for high performance; (2) Very low quiescent power dissipation - 10μA; (3) Output on-resistance typically 22 ohms; (4) Low parasitic capacitances; (5) DC to 10MHz analog signal frequency; (6) -60dB typical output off isolation at 5MHz; (7) CMOS logic circuitry for low power; (8) Excellent noise immunity; (9) On-chip shift register, latch and clear logic circuitry; (10) Flexible high voltage supplies.

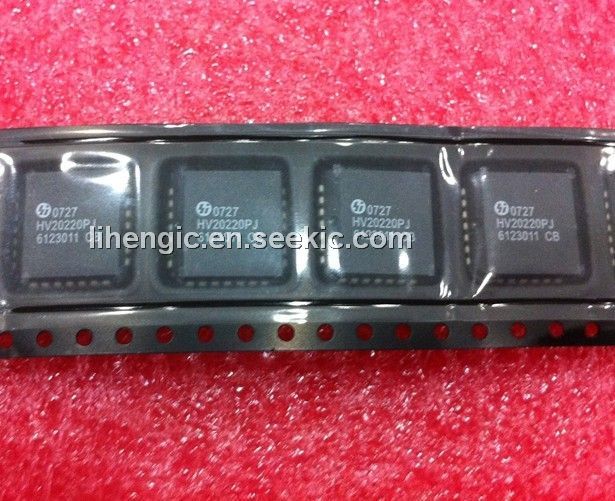

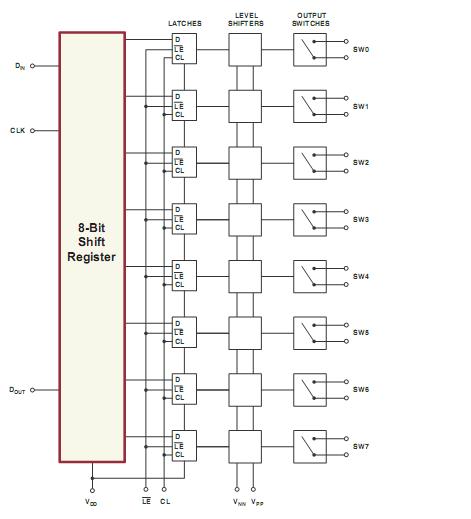

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HV20220PJ |
Supertex |
Analog Switch ICs 200V 8Chl w/Latches |
Data Sheet |
Negotiable |
|
||||||||||
|
HV20220PJ-G |
Supertex |
Analog Switch ICs 200V 8Chl w/Latches |
Data Sheet |
|
|
||||||||||
|
HV20220PJ-M902 |
Supertex |
Analog Switch ICs 200V 8Chl w/Latches |
Data Sheet |
Negotiable |
|
||||||||||
