Product Summary

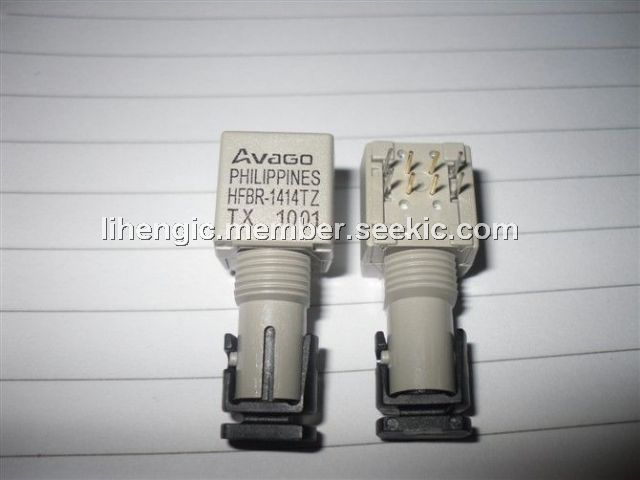

The HFBR-1414TZ is an Optical Transmitter for Industrial Applications with ST-Threaded Port. It provides a duplex solution optimized for 100 Base-SX. 100Base-SX is a Fast Ethernet Standard (100 Mbps) at 850 nm on multimode fiber. The HFBR-141T4Z is available for ST product offeringsincluding transmitter, receiver, connectored cable, and technical literature.
Parametrics
HFBR-1414TZ absolute maximum ratings: (1)Storage Temperature TS: -55℃ to +85℃; (2)Operating Temperature TA: -40℃ to +85℃; (3)Lead Soldering Cycle Temp: +260℃; (4)Lead Soldering Time: 10 sec; (5)Forward Input Current Peak: 200 mA; (6)Forward Input Current dc: 100 mA; (7)Reverse Input Voltage VBR: 1.8 V.
Features
HFBR-1414TZ features: (1)RoHS Compliant; (2)Meets IEEE 802.3 Ethernet and 802.5 Token Ring Standards; (3)Meets TIA/EIA-785 100Base-SX standard; (4)Low Cost Transmitters and Receivers; (5)Choice of ST, SMA, SC or FC Ports; (6)820 nm Wavelength Technology; (7)Signal Rates up to 160 MBd; (8)Link Distances up to 2.7 km.

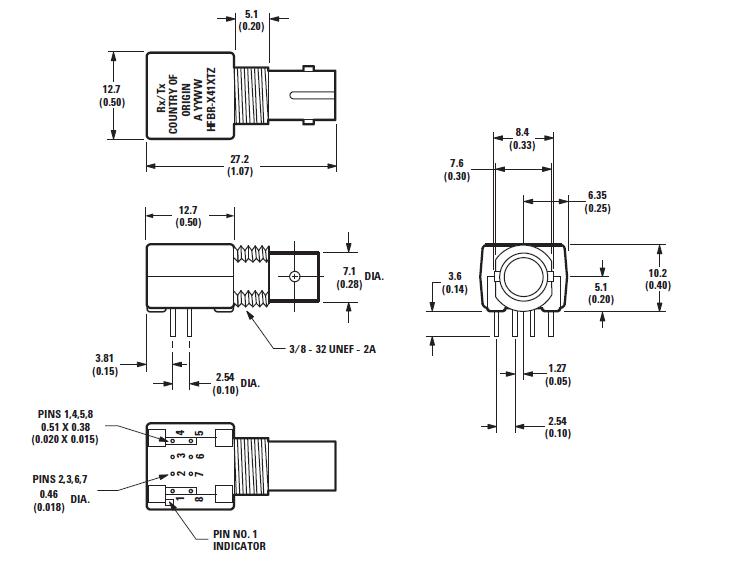

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFBR-1414TZ |
Avago Technologies |
Fiber Optic Transmitters, Receivers, Transceivers Low Cost Hi Pwr STT FO Tx-Pb Free |
Data Sheet |
|
|
||||||||||||
