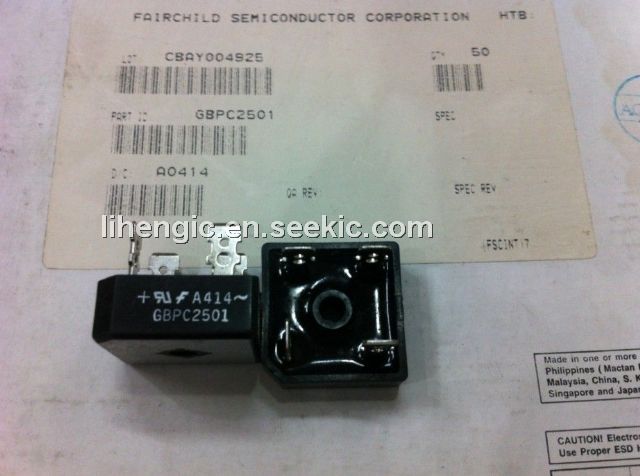

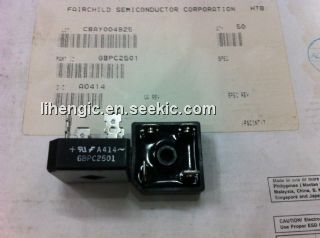

Product Summary
The GBPC2501 is a high current silicon bridge rectifier. And the voltage range of the GBPC2501 is from 50 to 800 volts and its current is 25A.
Parametrics
GBPC2501 absolute maximum ratings: (1) Maximum Recurrent Peak Reverse Voltage: 100V; (2) Maximum RMS Input Voltage: 70V; (3) Maximum DC Blocking Voltage: 100V; (4) DC Output Voltage, Resistive load: 62V; (5) DC Output Voltage, Capacitive load: 100V; (6) Maximum Average Forward Current For Resistive Load at TC=55°C: 25A; (7) Non-repetitive Peak Forward Surge Current at Rated Load: 300V; (8) Maximum Forward Voltage per Bridge Element at 12.5A Specified Current: 1.2V; (9) Maximum Reverse Leakage Current at Rated@TA=25°C, : 10μA, 1000μA ( Dc Blocking Voltage@TA=100°C; (10) Typical Thermal Resistance per leg (Fig 3) RθJC: 2.0°C/W; (11) Operating Temperature Range, TJ: -55 to 150°C; (12) Storage Temperature Range, TA: -55 to 150°C.
Features
GBPC2501 features: (1) Plastic material has Underwriters Laboratory Flammability Classification 94V-O; (2) The plastic package has Underwriters Laboratory Flammability Classification 94V-O; (3) Surge overload ratings to 300 Amperes.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GBPC2501 |
Fairchild Semiconductor |
Bridge Rectifiers 25A Bridge Rectifier |
Data Sheet |
|
|
|||||||||||||
GBPC2501/1 |
Vishay Semiconductors |
Bridge Rectifiers 25 Amp 100 Volt |
Data Sheet |
Negotiable |
|
|||||||||||||
GBPC2501-E4/51 |
Vishay Semiconductors |
Bridge Rectifiers 25 Amp 100 Volt |
Data Sheet |
|
|
|||||||||||||
GBPC25010T/W |
GeneSiC Semiconductor |
Bridge Rectifiers 1000V 25A Bridge Rectifier |
Data Sheet |
|
|
|||||||||||||
GBPC2501_Q |
Fairchild Semiconductor |
Bridge Rectifiers 25A Bridge Rectifier |
Data Sheet |
Negotiable |
|
|||||||||||||
GBPC2501-G |
RECTIFIER BRIDGE 25A 100V GBPC |
Data Sheet |
|
|
||||||||||||||
GBPC2501W-E4/51 |
Vishay Semiconductors |
Bridge Rectifiers 25 Amp 100 Volt |
Data Sheet |
|
|
|||||||||||||
GBPC2501W |
Fairchild Semiconductor |
Bridge Rectifiers 25A Bridge Rectifier |
Data Sheet |
|
|
