Product Summary

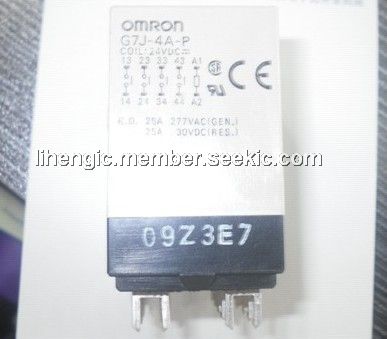

The G7J-4A-P 24VDC is a General Purpose Relay.

Parametrics

G7J-4A-P 24VDC absolute maximum ratings: (1)Contact resistance: 50 mΩ; (2)Operating time: 50 ms; (3)Release time: 50 ms; (4)Dielectric strength: 4,000 VAC, 50/60 Hz; (5)Vibration Mechanical durability: 10 Hz to 55 Hz; (6)Ambient temperature Operating: -25℃ to 60℃.

Features

G7J-4A-P 24VDC features: (1)Ideal for 3-phase motor control applications and resistive and inductive loads; (2)No contact chattering for momentary voltage drops up to 50% of rated voltage; (3)Withstands more than 4 kV between contacts that are of different polarity and between the coil and contacts; (4)Flame-resistant materials (UL94V-0) used for all insulation; (5)Push-to-test button on all models lets user check contact operation; (6)Class B coil insulation available.

Diagrams

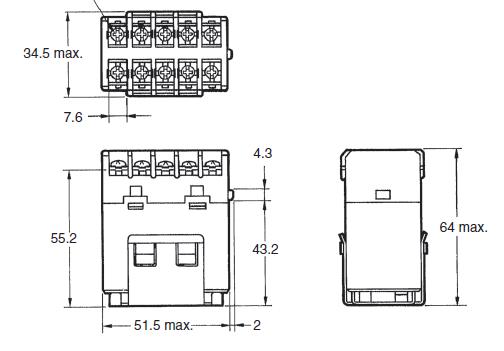

G7J-4A-P 24VDC package dimensions
